3.5ton Mini Excavator
3.5ton Mini Excavator
Couldn't load pickup availability
Engines Available: Kubota, Perkins and Yuchai.

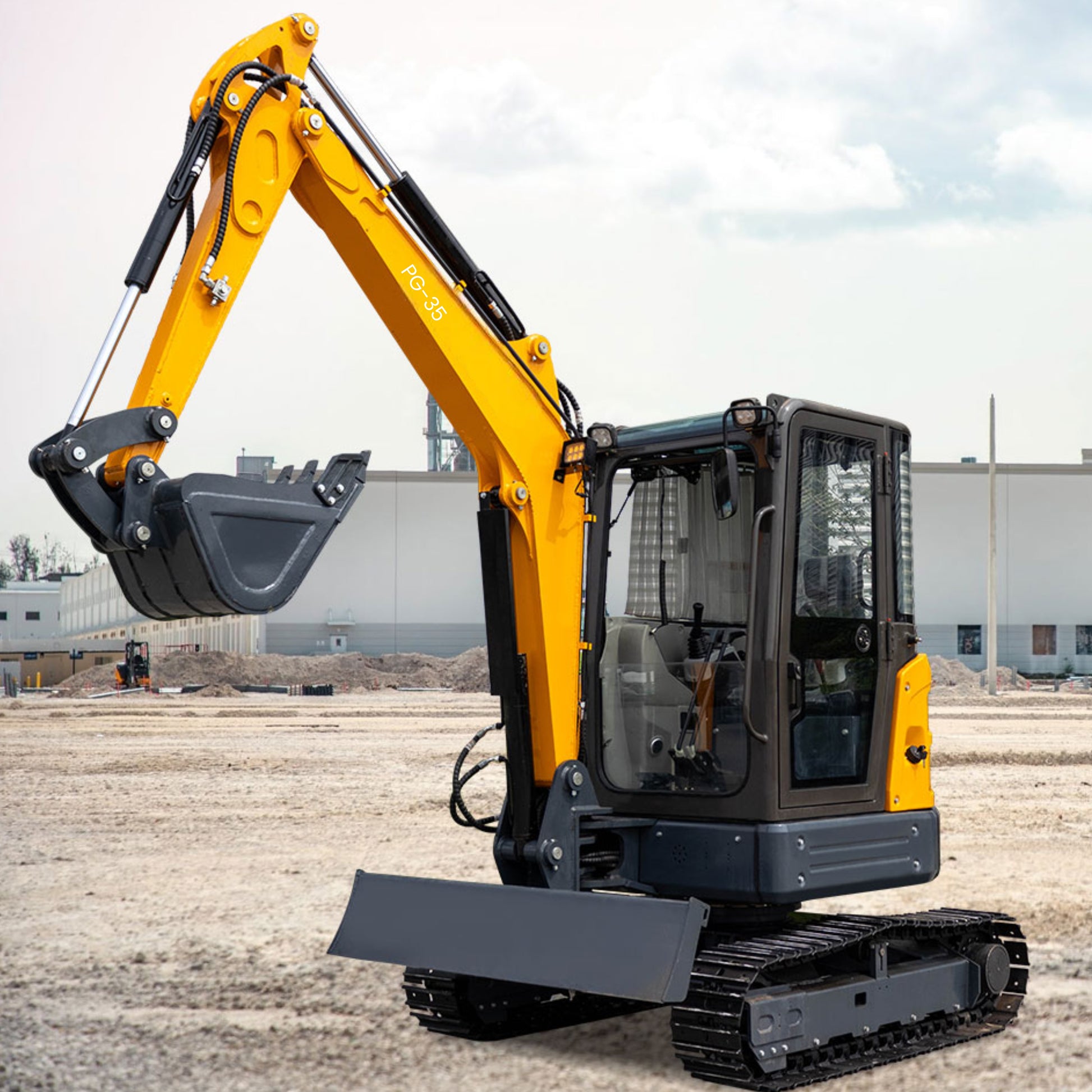

Built for those who demand strength, reliability, and versatility, the PG35 Compact Excavator delivers premium digging power and control in a compact frame. Designed with a powerful Kubota D1703 engine, advanced hydraulic technology, and superior stability, this machine is the perfect partner for construction, landscaping, trenching, and utility projects.
Uncompromising Power & Efficiency
At the heart of the PG35 is the Kubota D1703 three-cylinder direct injection engine, producing a reliable 18.5 kW at 2200 rpm. This efficient powerplant drives an advanced swash plate type axial piston variable pump system, generating up to 24 MPa of hydraulic pressure with a system flow rate of 79.2 L/min — giving you smooth, responsive control and maximum digging performance.
Bucket Digging Force: 30.4 kN
Arm Digging Force: 18.2 kN
Maximum Digging Depth: 3106 mm
Maximum Reach: 5175 mm
Maximum Digging Height: 4938 mm
Compact Design, Outstanding Manoeuvrability
Despite its power, the PG35 is compact enough to tackle tight job sites with ease.
Total Length: 5029 mm
Width: 1720 mm
Tail Swing Radius: Only 885 mm

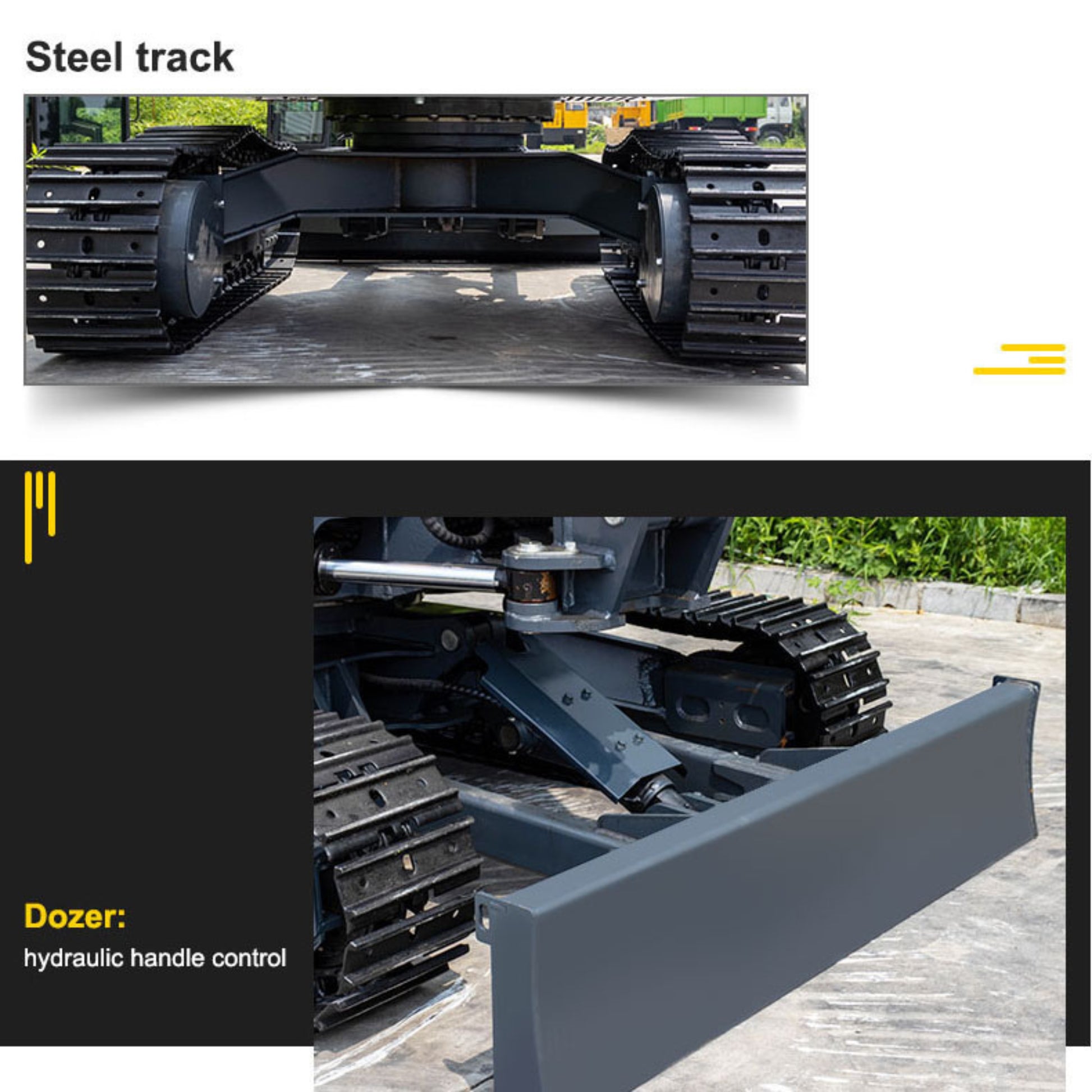

Its minimum turning radius of 2634 mm ensures smooth operation even in confined spaces, while the 300 mm track plates and ground clearance of 319 mm offer excellent stability and traction on uneven terrain.
Built for Productivity
Engineered for long hours of operation, the PG35 features:
Variable piston traveling motor with two-speed travel (4.2 / 2.4 km/h) for quick mobility between sites.
Flow Sharing Main Valve (HVSE-09-09-P270-BE212) for seamless multi-function control.
Large 50L fuel tank and 55L hydraulic oil tank for extended uptime.
Durable 0.12 m³ bucket ideal for general-purpose excavation.
From grading to digging and lifting, every component is optimized for balance and performance.
Comfort Meets Control

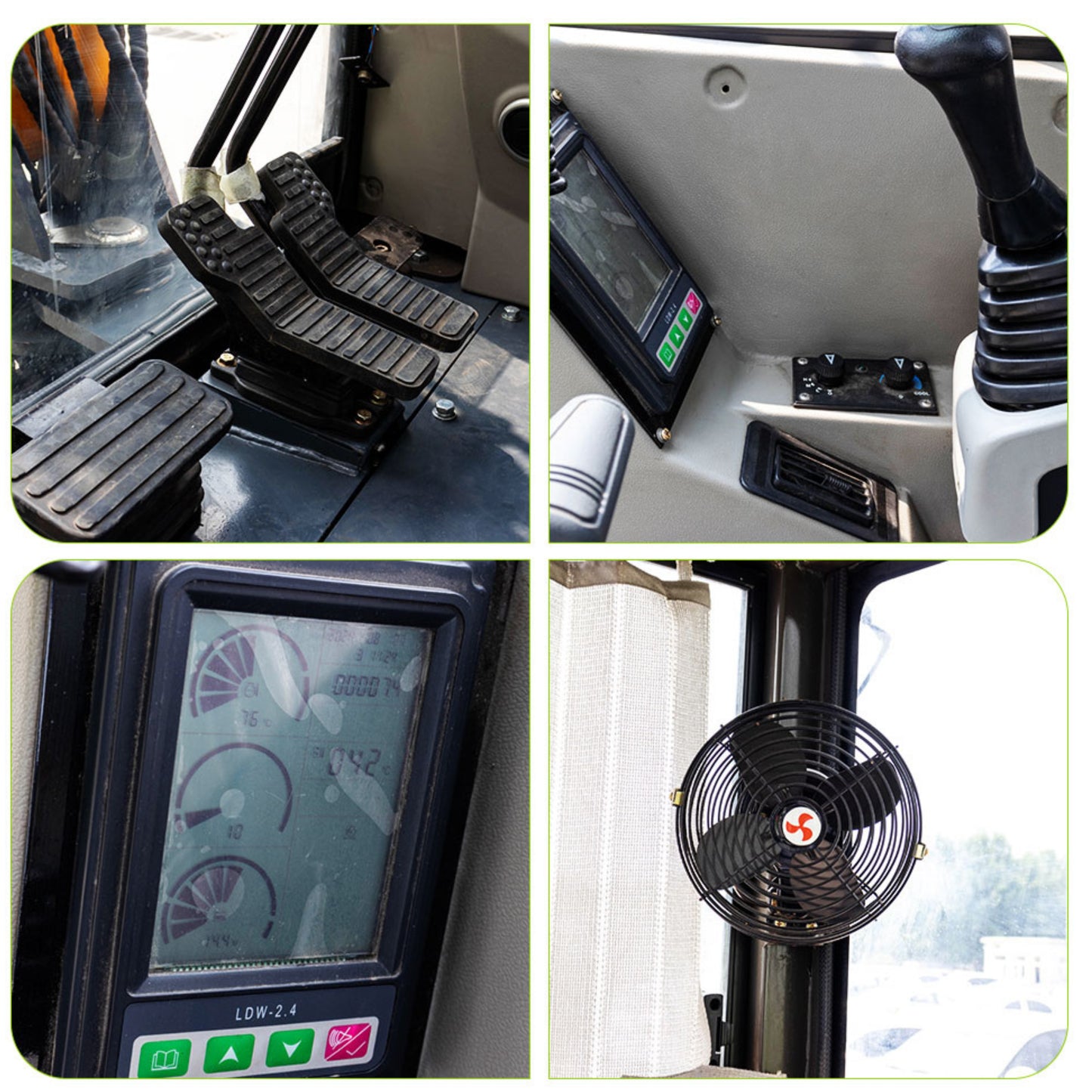

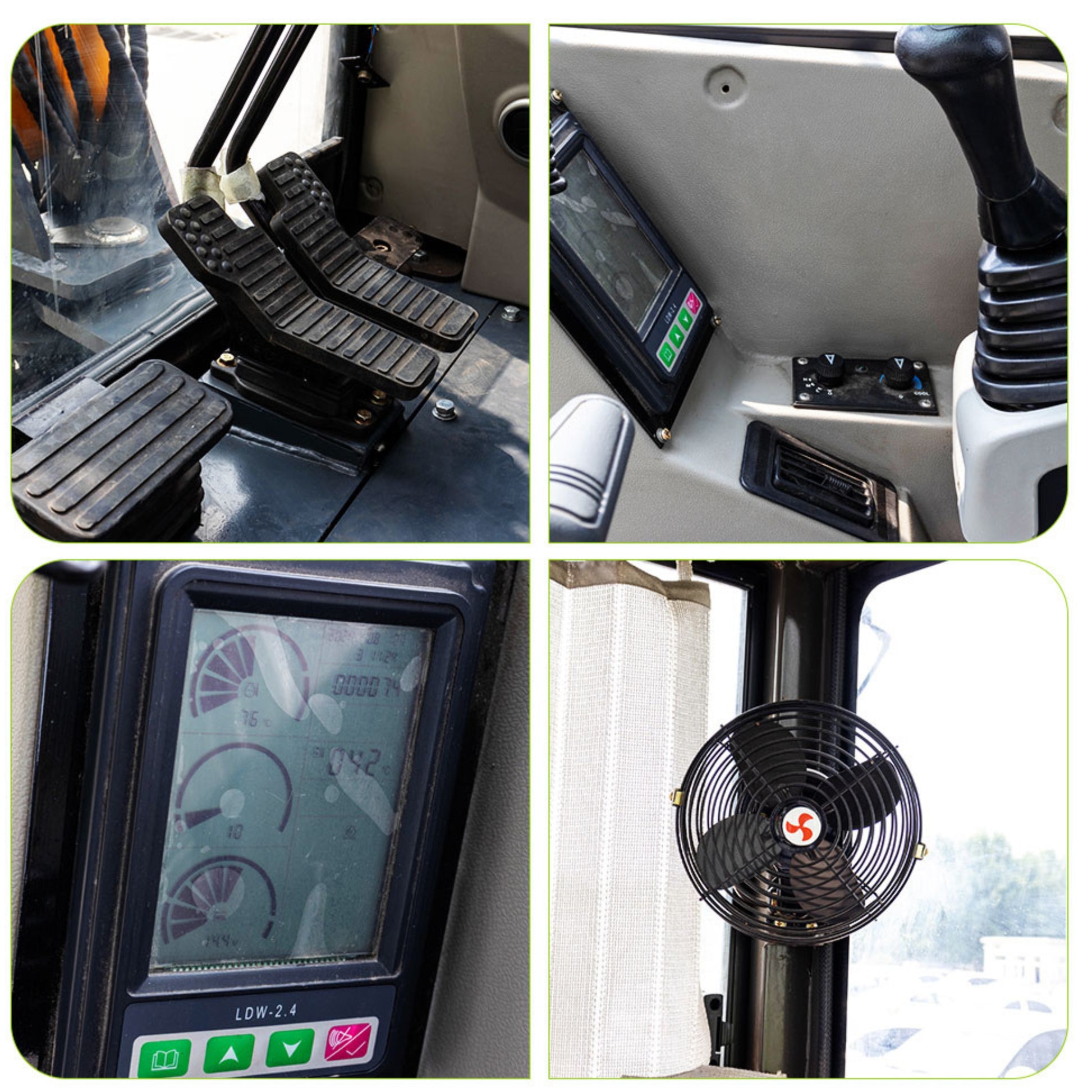

The spacious operator cabin (height: 2580 mm) provides all-day comfort, clear visibility, and intuitive joystick controls. Its ergonomic design minimizes fatigue and maximizes precision, allowing operators to work longer and smarter.
Key Specifications
| Specification | Details |
|---|---|
| Operating Weight | 3500 kg |
| Engine Model | Kubota D1703 |
| Rated Power | 18.5 kW / 2200 rpm |
| Hydraulic Pressure | 24 MPa |
| System Flow Rate | 79.2 L/min |
| Bucket Capacity | 0.12 m³ |
| Max Digging Depth | 3106 mm |
| Max Digging Height | 4938 mm |
| Travel Speed | 4.2 / 2.4 km/h |
| Tail Swing Radius | 885 mm |
| Climbing Capacity | 58% |
| Fuel Tank Capacity | 50 L |
Why Choose the PG35?
✅ Proven Kubota D1703 diesel engine for superior reliability
✅ Powerful 30.4 kN bucket force for demanding excavation tasks
✅ Compact tail-swing design for tight site access
✅ Advanced flow-sharing hydraulics for smooth multitasking
✅ Long-lasting durability with easy service access
Experience the Power of Precision
Whether you’re building, grading, trenching, or landscaping, the PG35 Compact Excavator gives you the performance edge you need. Its combination of Japanese-engineered power, hydraulic efficiency, and operator comfort makes it the go-to solution for professionals who demand more from their equipment.
