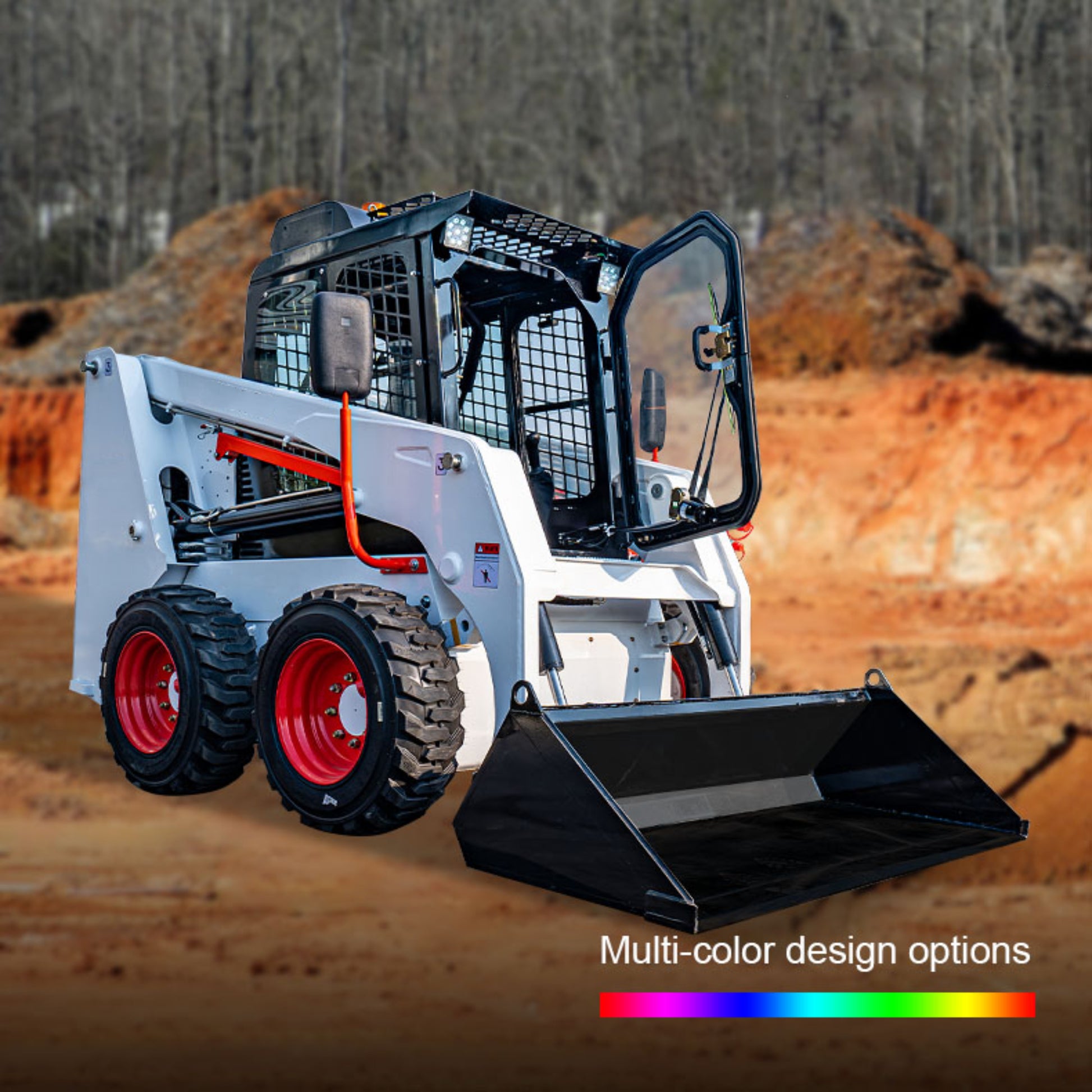

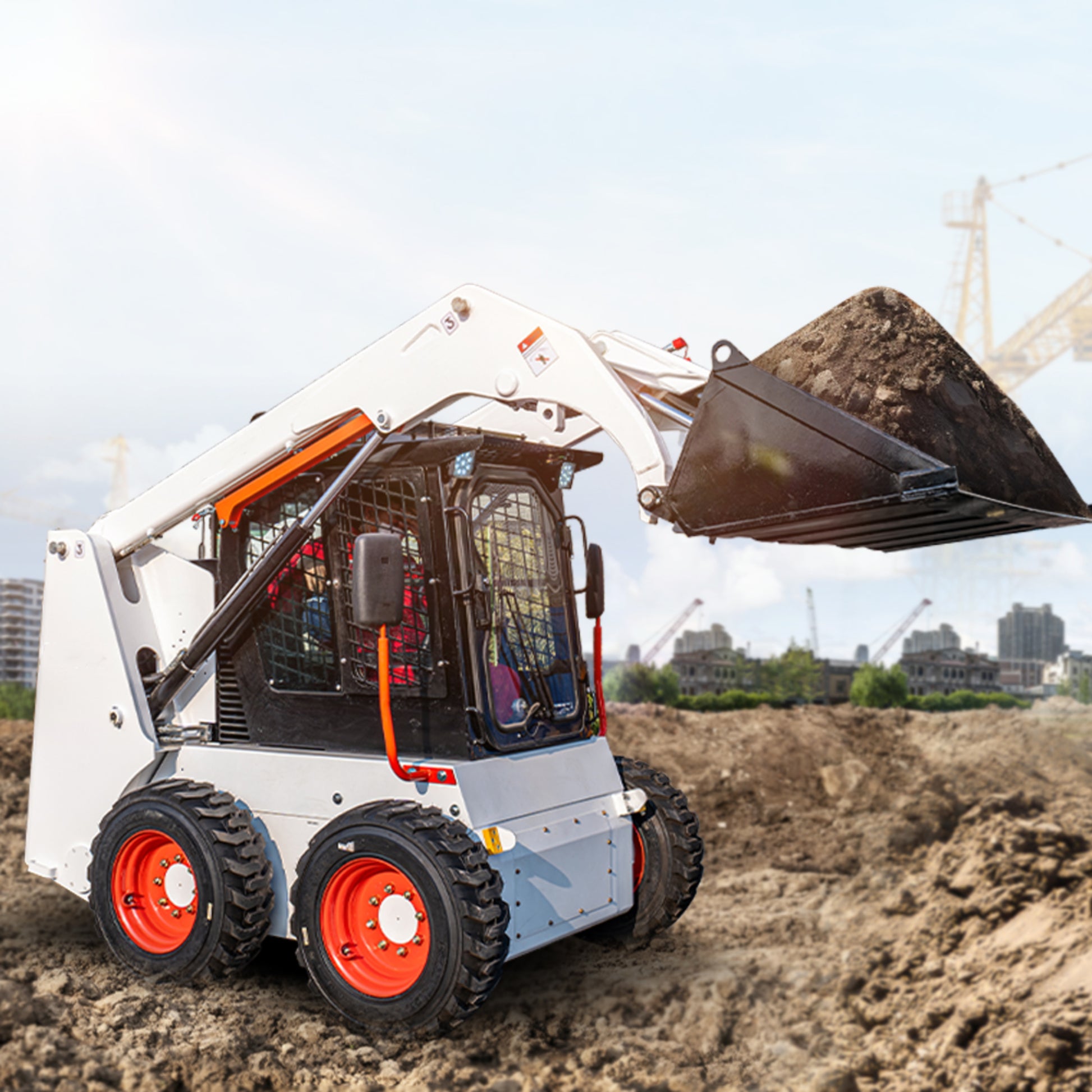

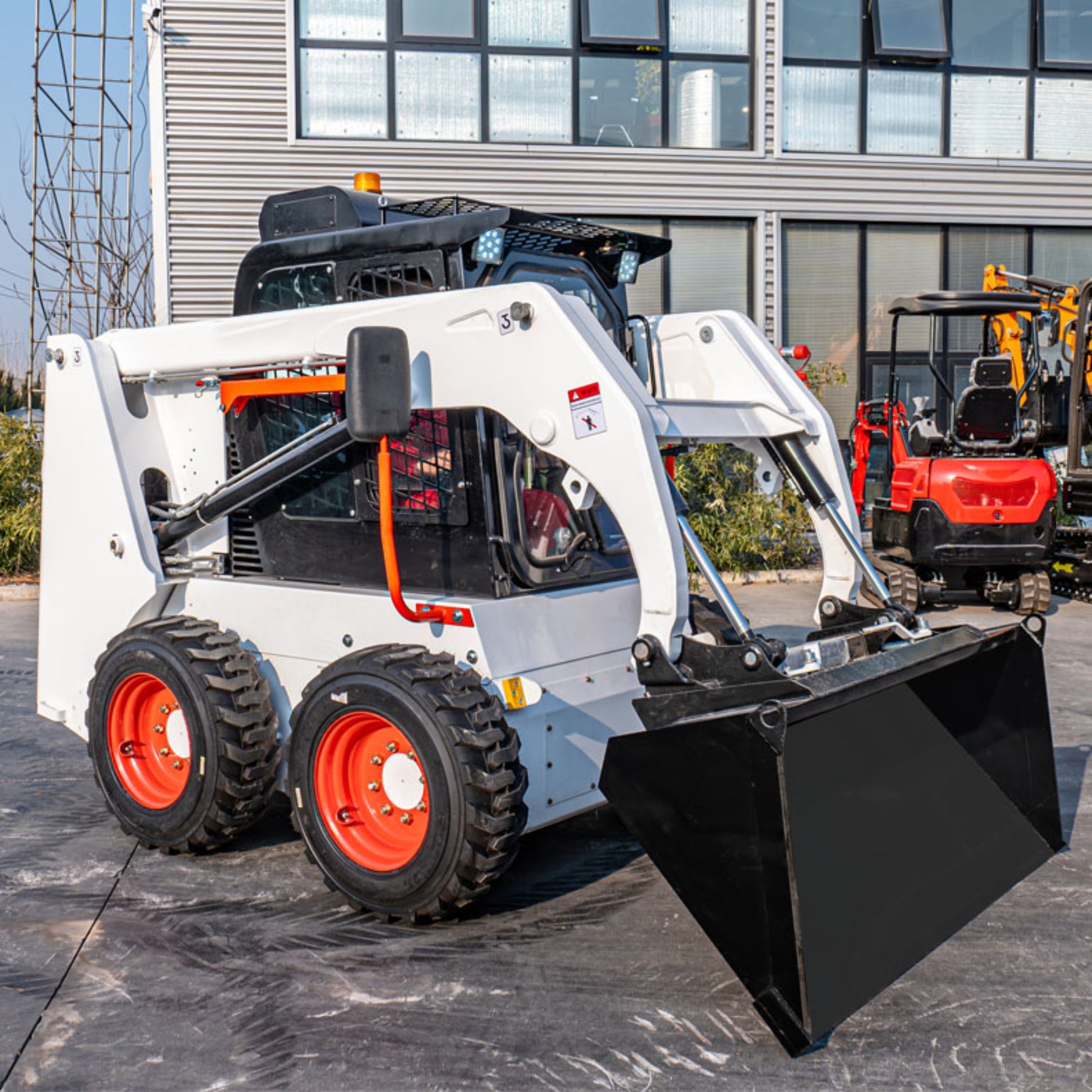

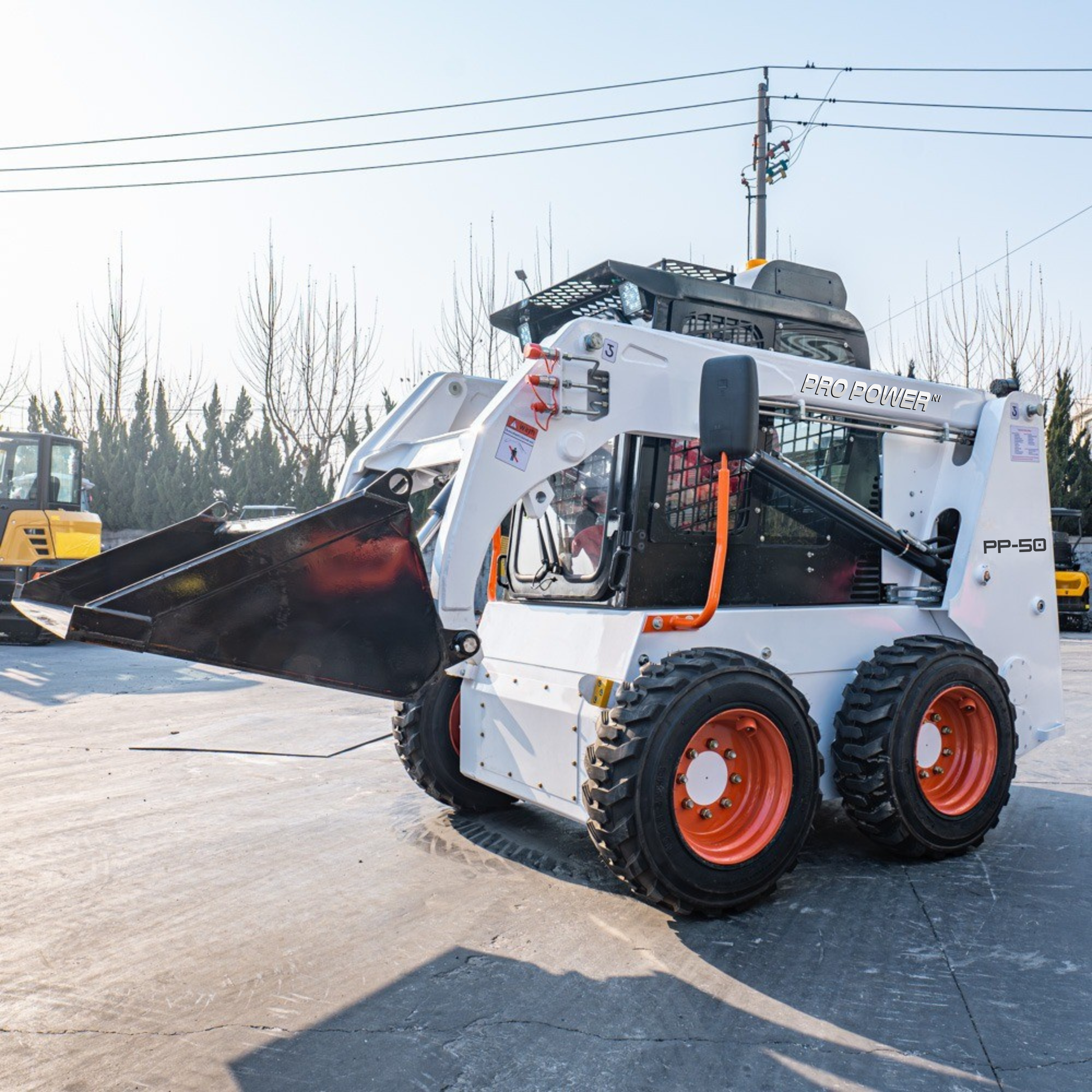

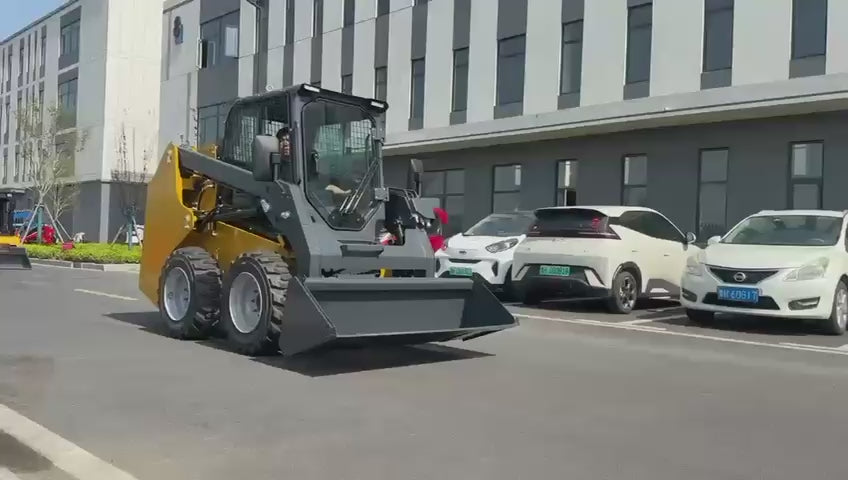

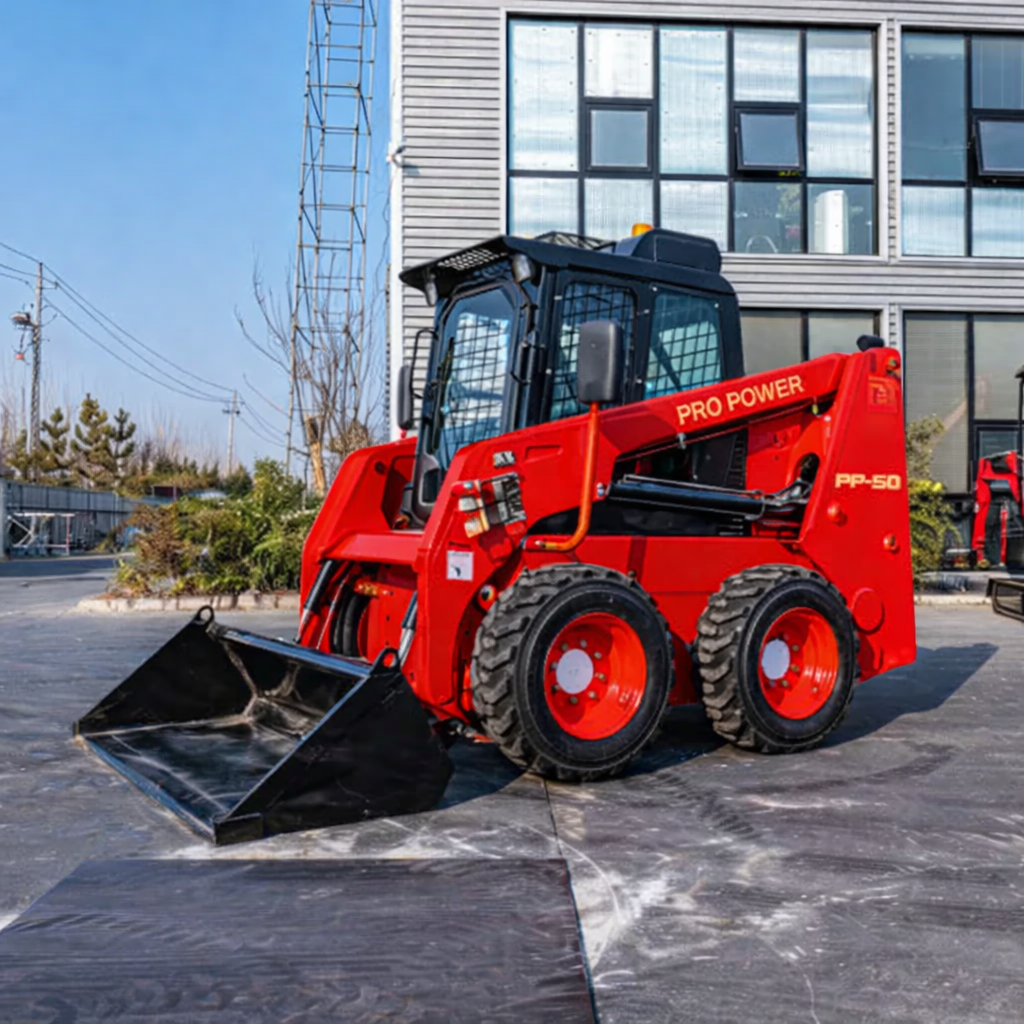

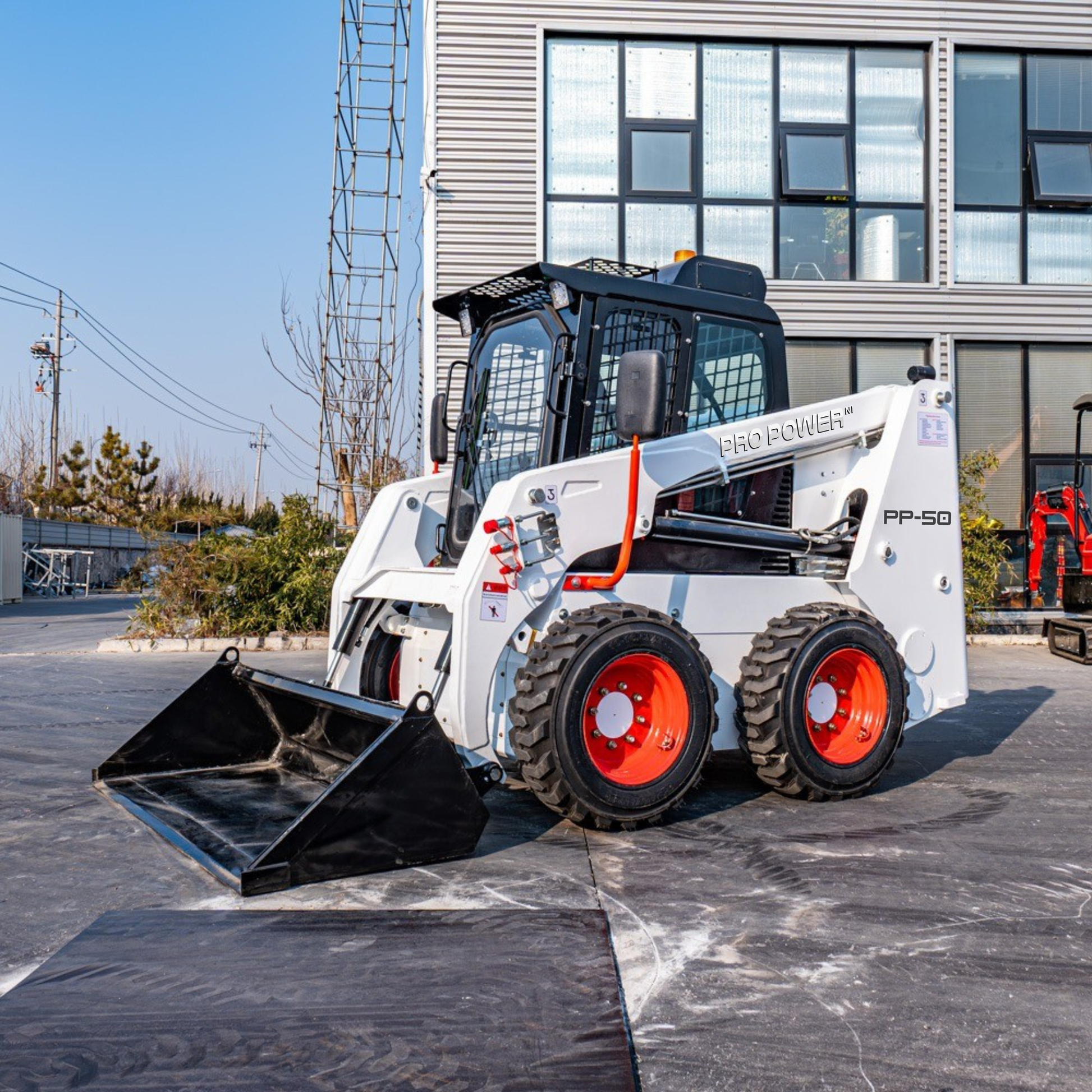

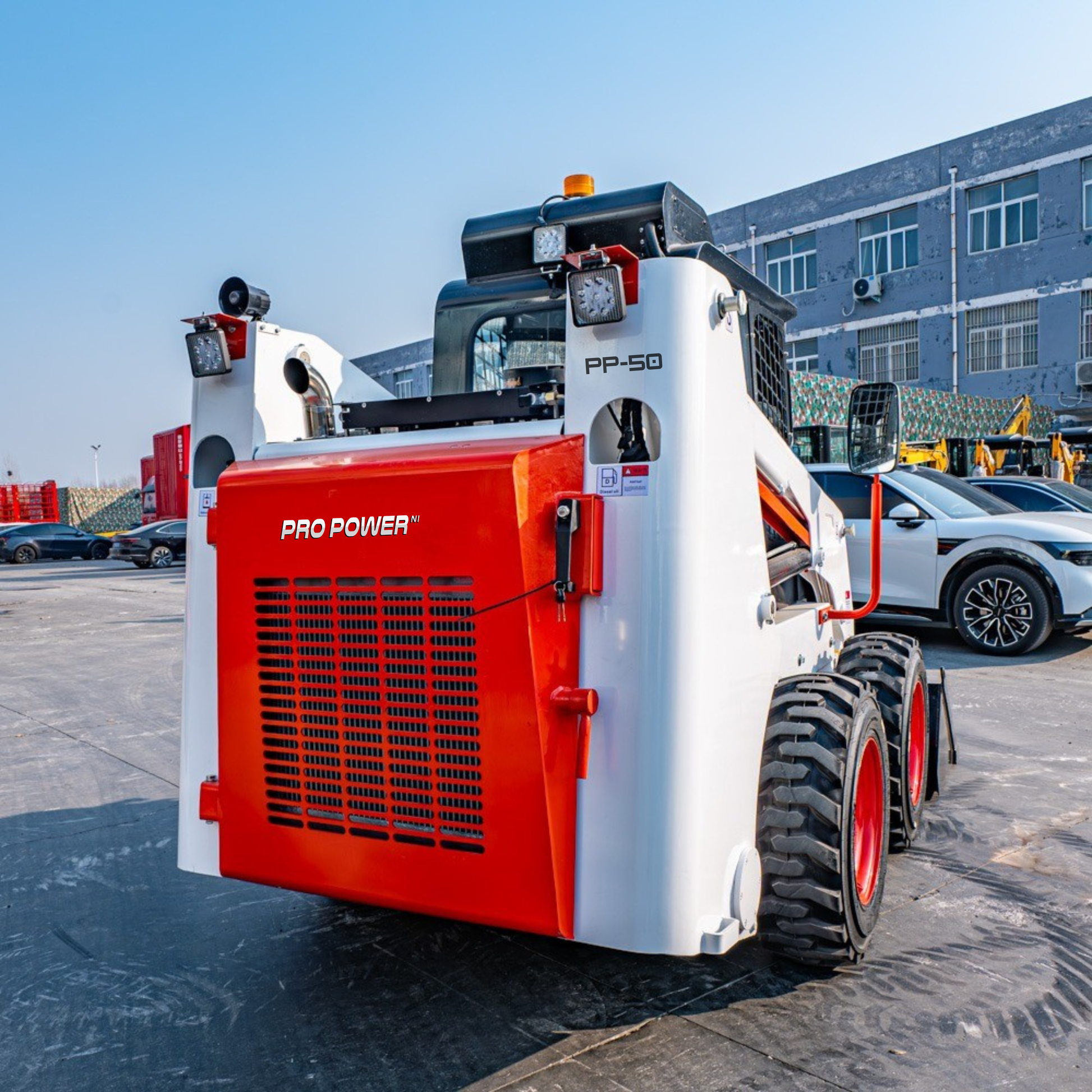

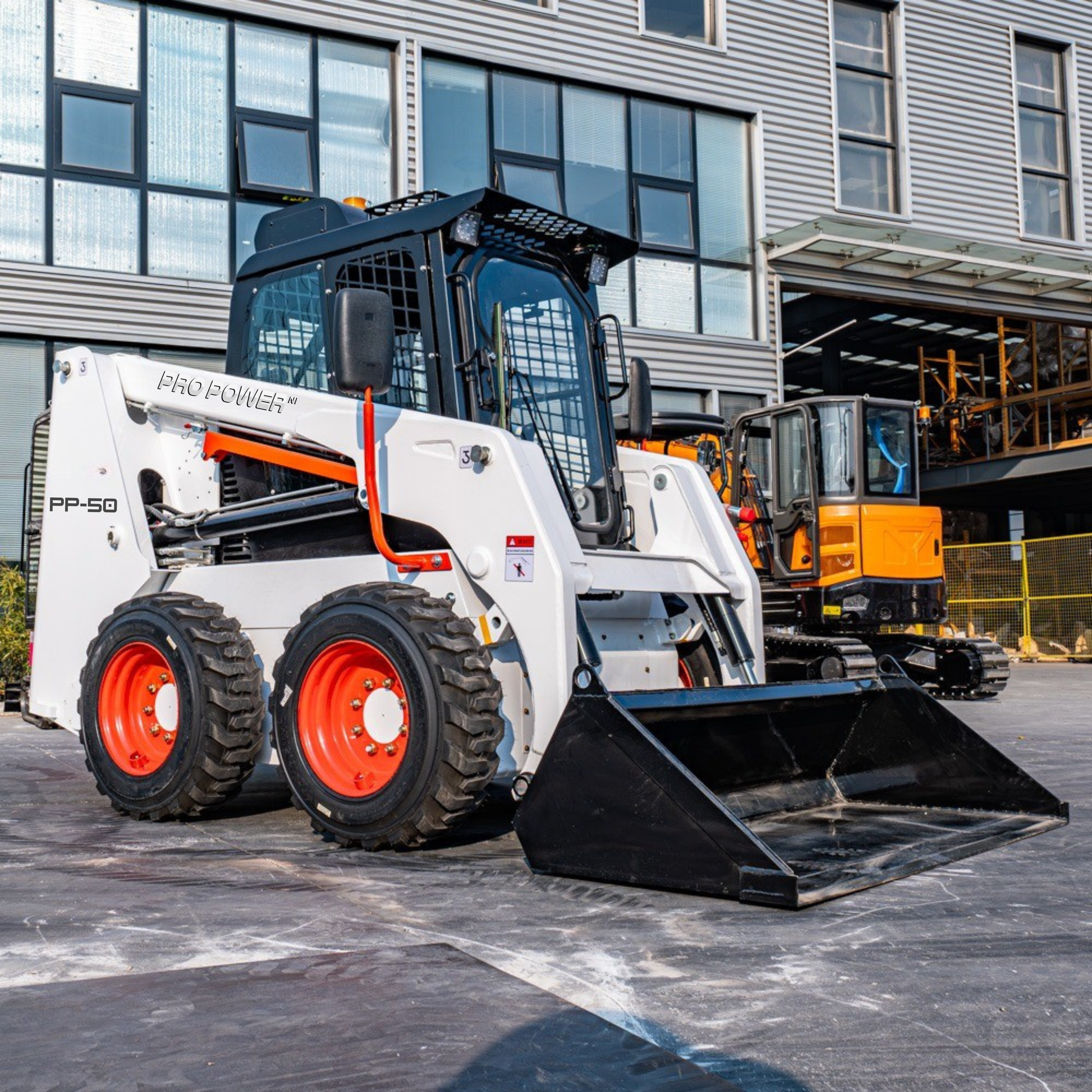

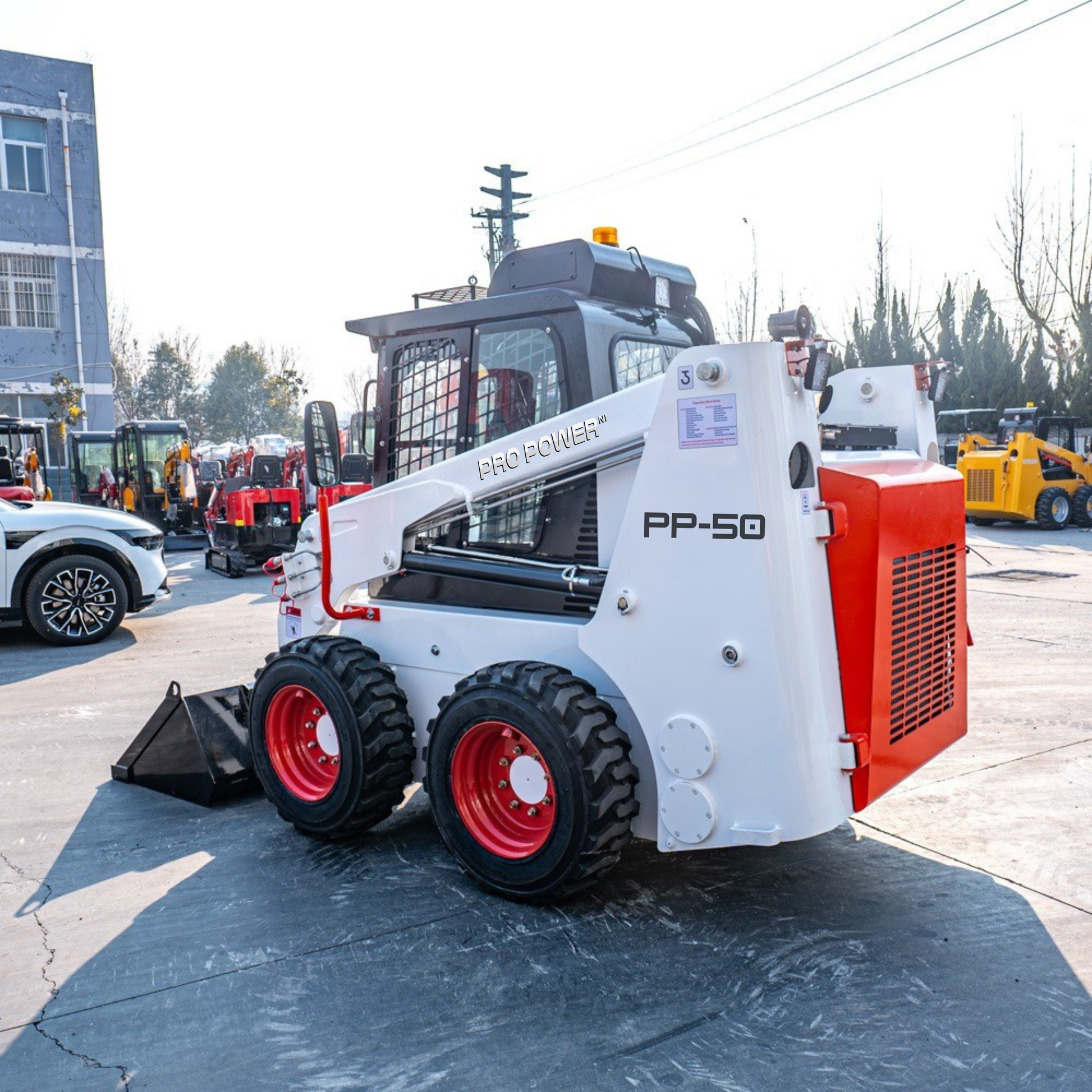

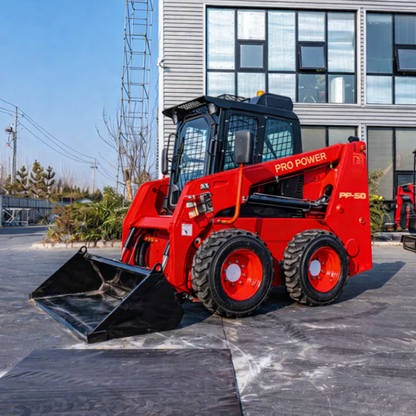

PGS-50 Wheel Skid Steer Loader
PGS-50 Wheel Skid Steer Loader
Couldn't load pickup availability
Engines Available: Kubota, Perkins and Yuchai.
When you need a loader that delivers serious strength in a compact size, the PGS50 Compact Wheel Loader is built to outperform. Designed for efficiency, durability, and versatility, this powerhouse combines exceptional lifting capacity, superior stability, and smooth handling — making it the ultimate machine for construction sites, landscaping, agriculture, and material handling.
Rated Working Capacity: 750 kg
Overturning Working Capacity: 1500 kg
Operating Weight: 3003 kg
Bucket Capacity: 0.35 m³
Built for consistent performance, the PGS50 is the perfect blend of power, precision, and productivity.
Designed for Versatility & Control
Engineered for smooth, confident operation, this loader offers:
Max Operation Height: 4058 mm
Max Unloading Height: 2303 mm
Unloading Distance: 675 mm
Mechanical / Hydraulic Control System for precise handling
Max Working Speed: 12 km/h
Whether you’re stacking materials, clearing debris, or loading soil, the PGS50 provides stable, responsive control for efficient, all-day work.
Compact Design, Superior Manoeuvrability
Perfect for confined job sites, the PGS50 combines a short wheelbase (999 mm) with a rear turning radius of just 1627 mm, giving you excellent agility and turning performance. Its 185 mm ground clearance and 23° departure angle ensure reliable operation over uneven terrain or obstacles.
Built for Operator Comfort

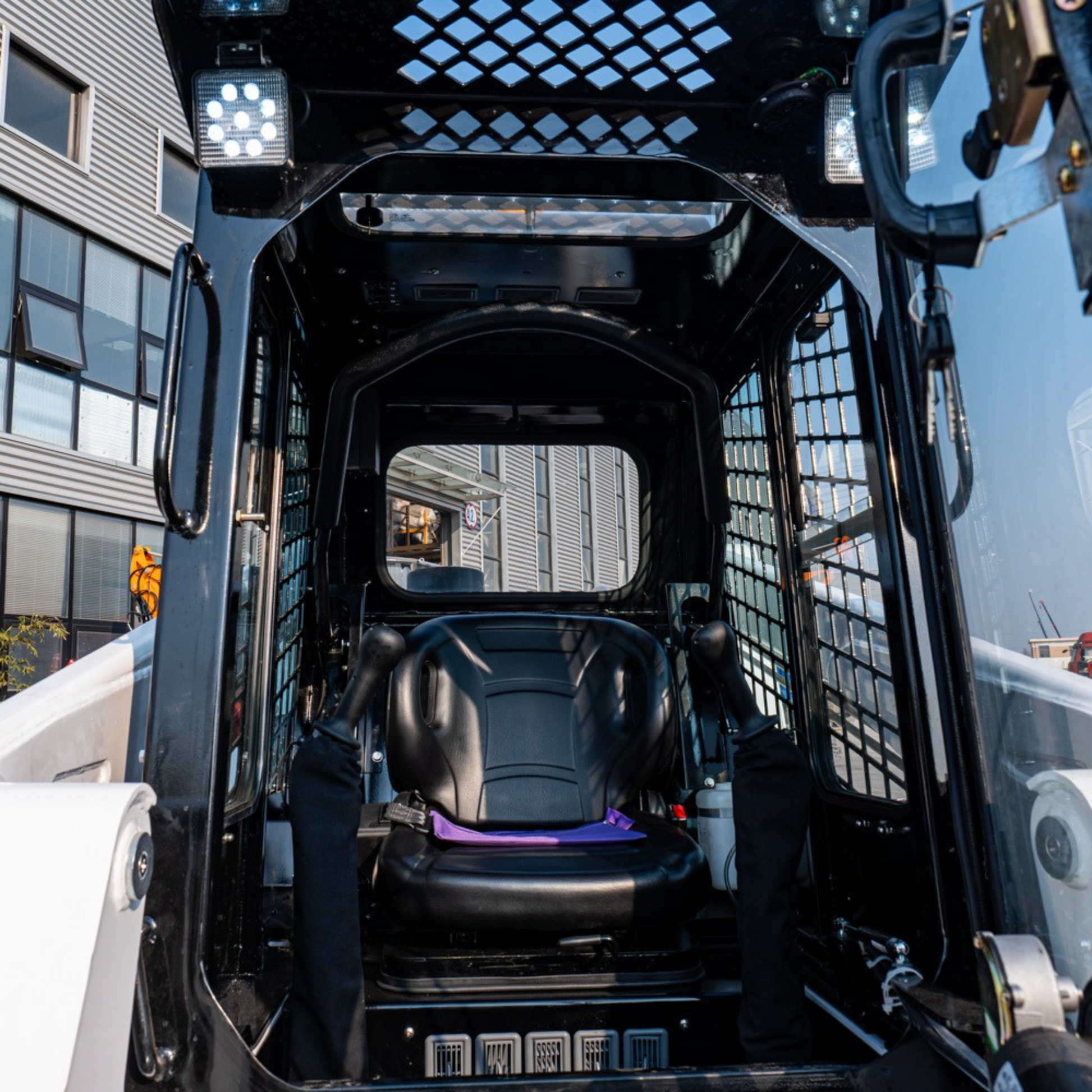

The spacious 2007 mm cabin is designed for visibility and comfort, reducing fatigue during long shifts. With easy-to-use controls and an ergonomic layout, operators can stay productive and focused no matter the task.
Rugged Durability, Simplified Maintenance

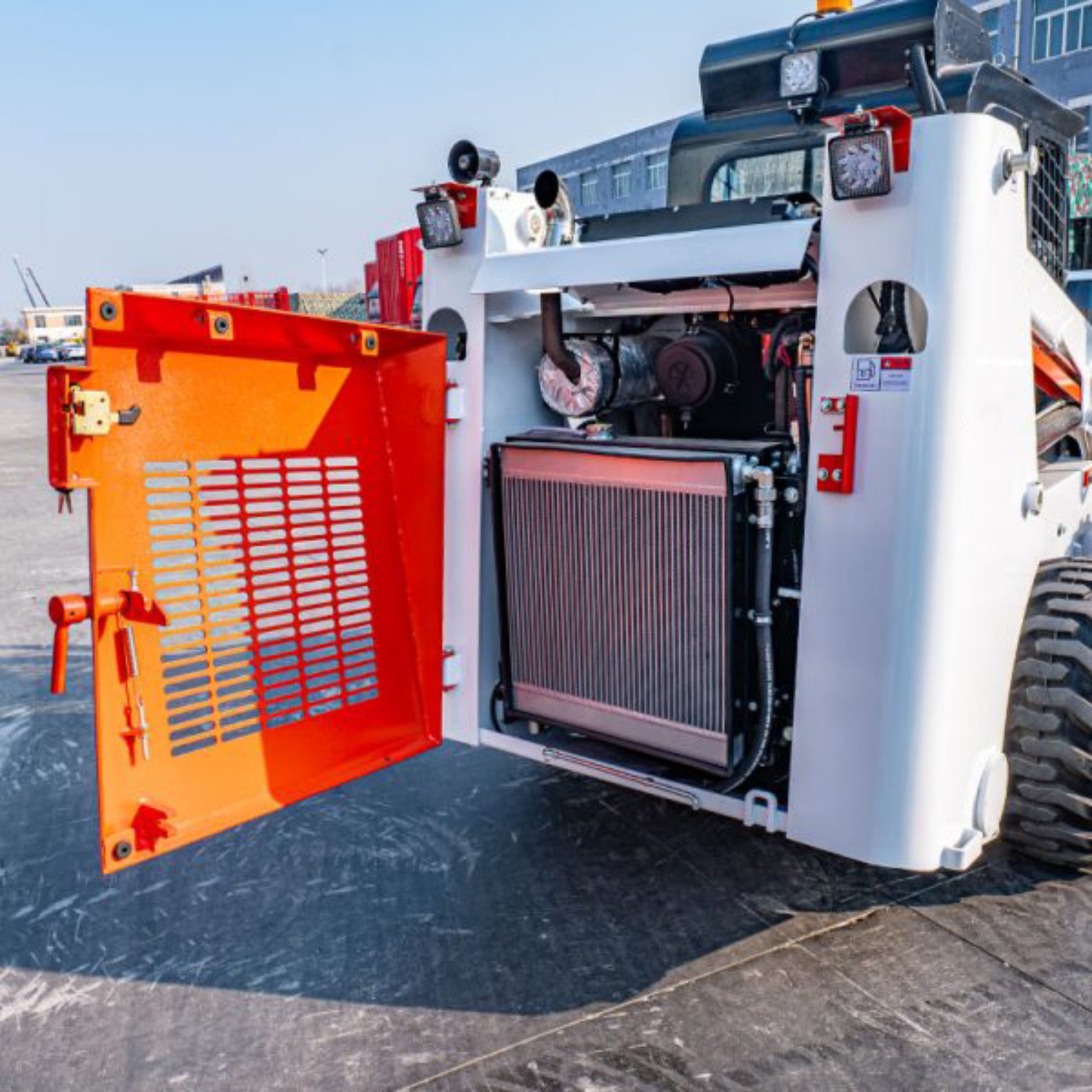

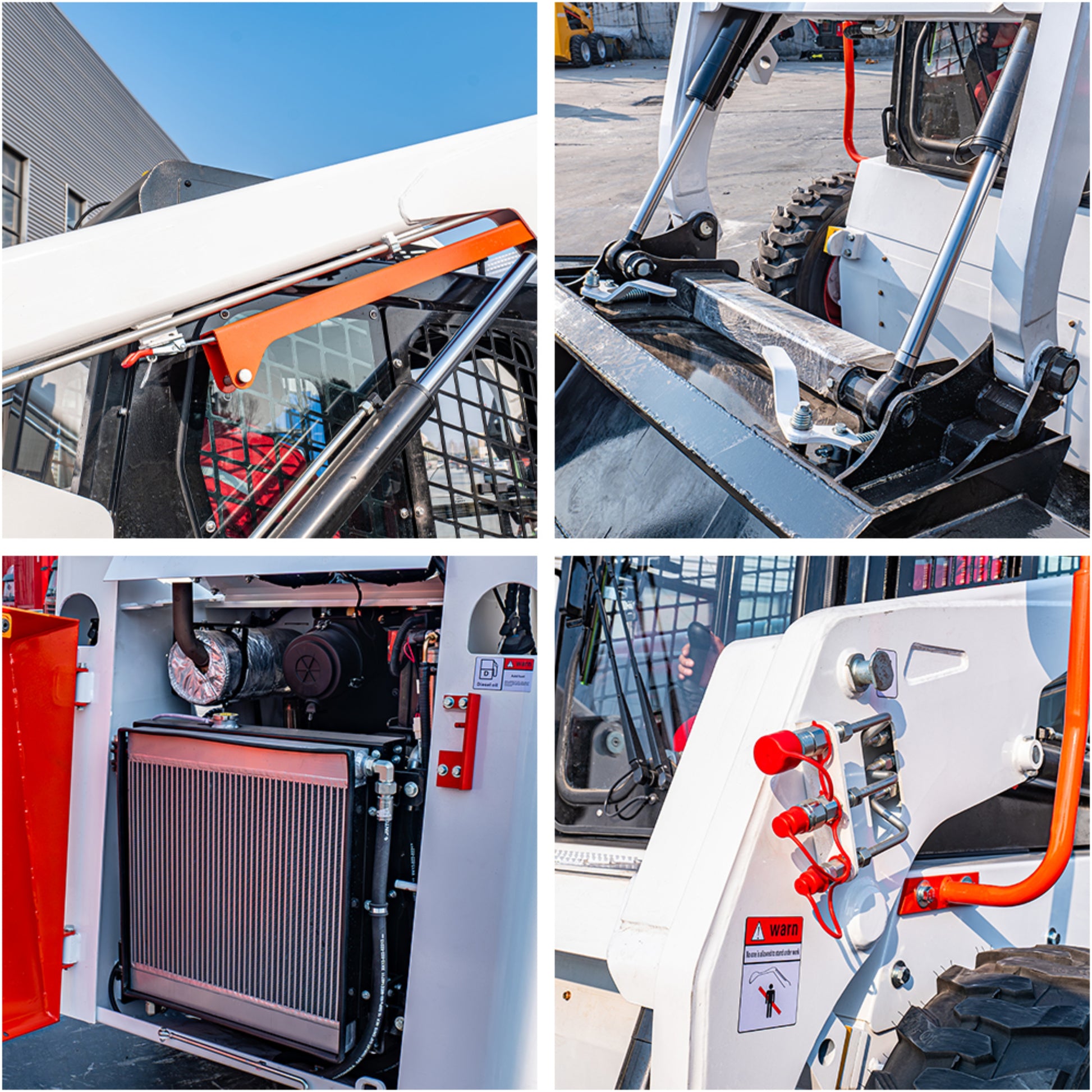

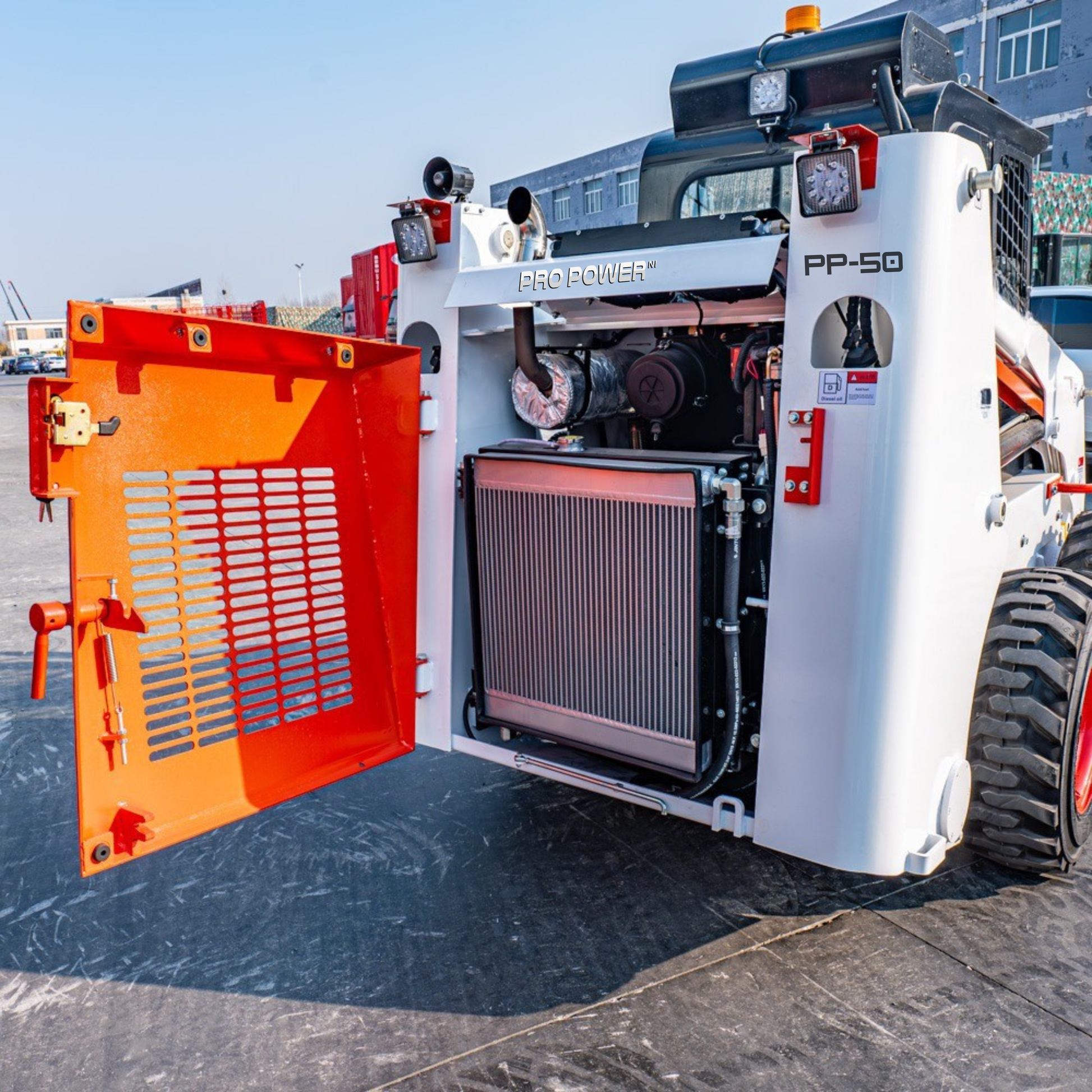

Every component of the PGS50 is designed for endurance. With robust steel construction, large-capacity fuel and hydraulic tanks, and easy-access service points, you’ll spend more time working and less time in maintenance.
Diesel Fuel Tank Capacity: 88 L
Hydraulic Fuel Tank Capacity: 70 L

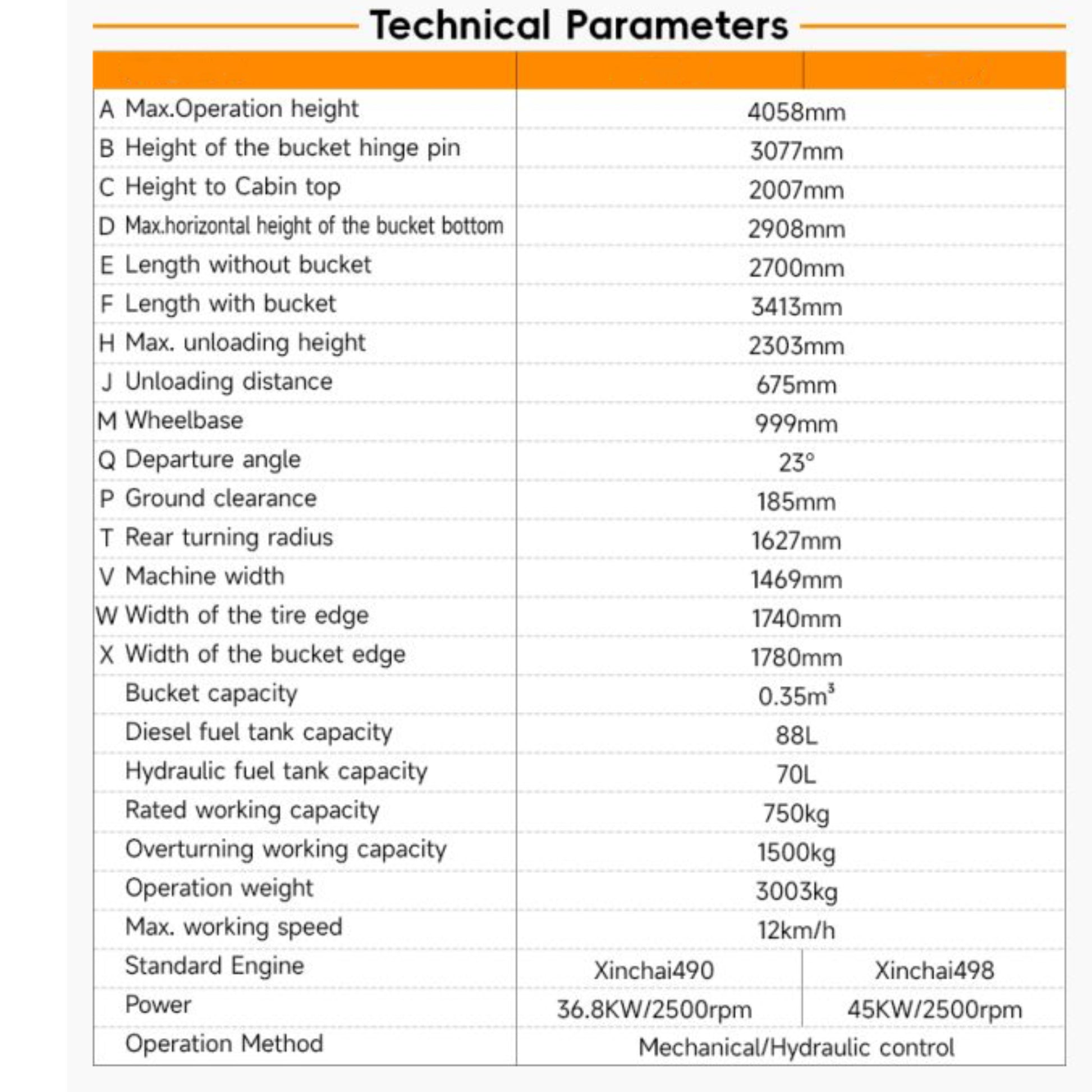

Key Specifications
| Specification | Value |
|---|---|
| Max Operation Height | 4058 mm |
| Unloading Height | 2303 mm |
| Unloading Distance | 675 mm |
| Rated Capacity | 750 kg |
| Overturning Capacity | 1500 kg |
| Operating Weight | 3003 kg |
| Engine Power | 36.8 kW / 2500 rpm |
| Bucket Capacity | 0.35 m³ |
| Ground Clearance | 185 mm |
| Wheelbase | 999 mm |
| Working Speed | 12 km/h |
Why Choose the PGS50 Compact Loader?
✅ High-performance Xinchai490 diesel engine for powerful, efficient output
✅ Excellent lift and reach for loading and material handling
✅ Compact body and tight turning radius ideal for limited spaces
✅ Durable design built for heavy-duty work environments
✅ Comfortable, ergonomic operator cabin for long-hour efficiency
Tough Jobs. Tight Spaces. Total Control.
The PGS50 Compact Wheel Loader is engineered for professionals who need reliability, strength, and precision — all in one machine. From construction sites to farms, it’s your ultimate partner for heavy lifting and smooth operation.
