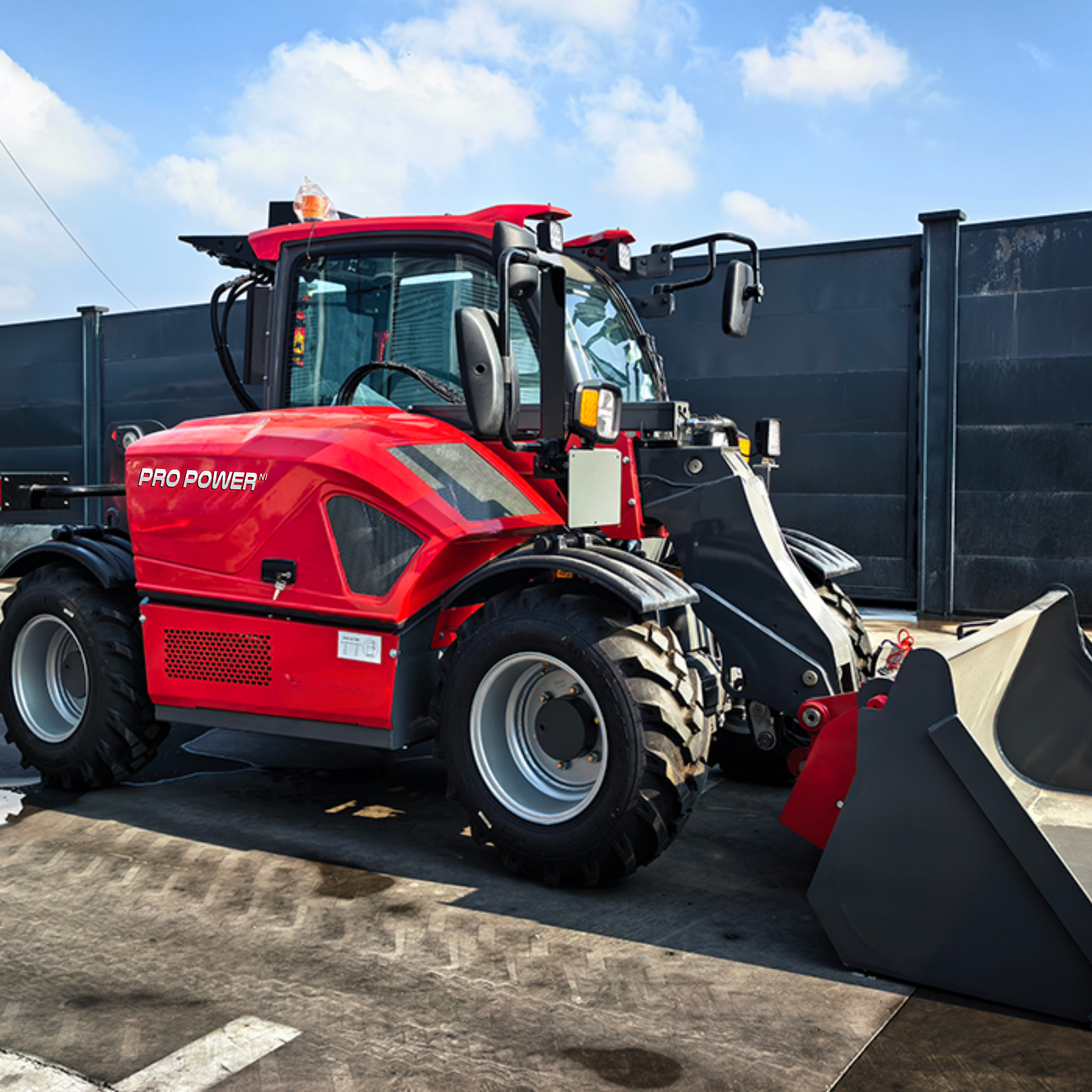

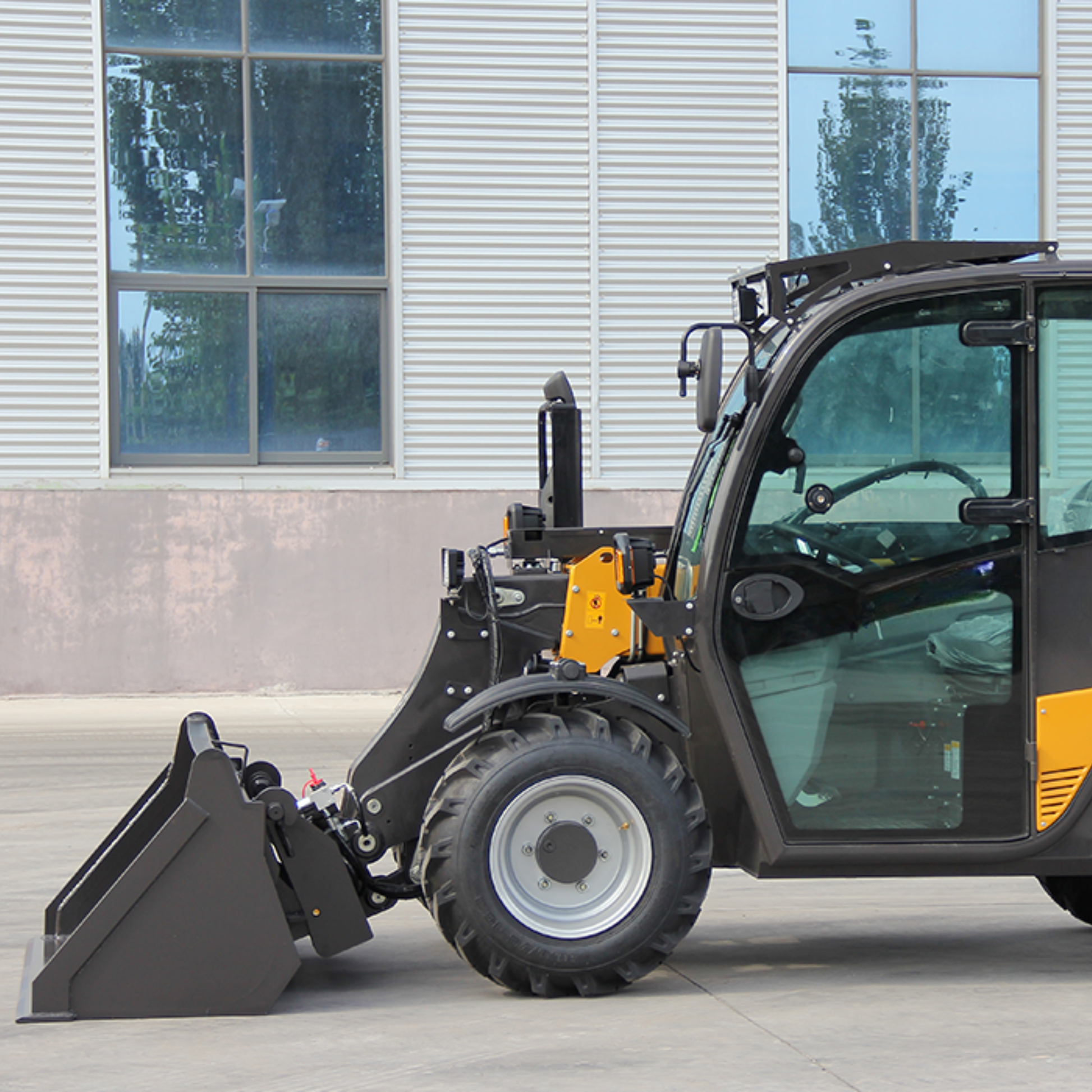

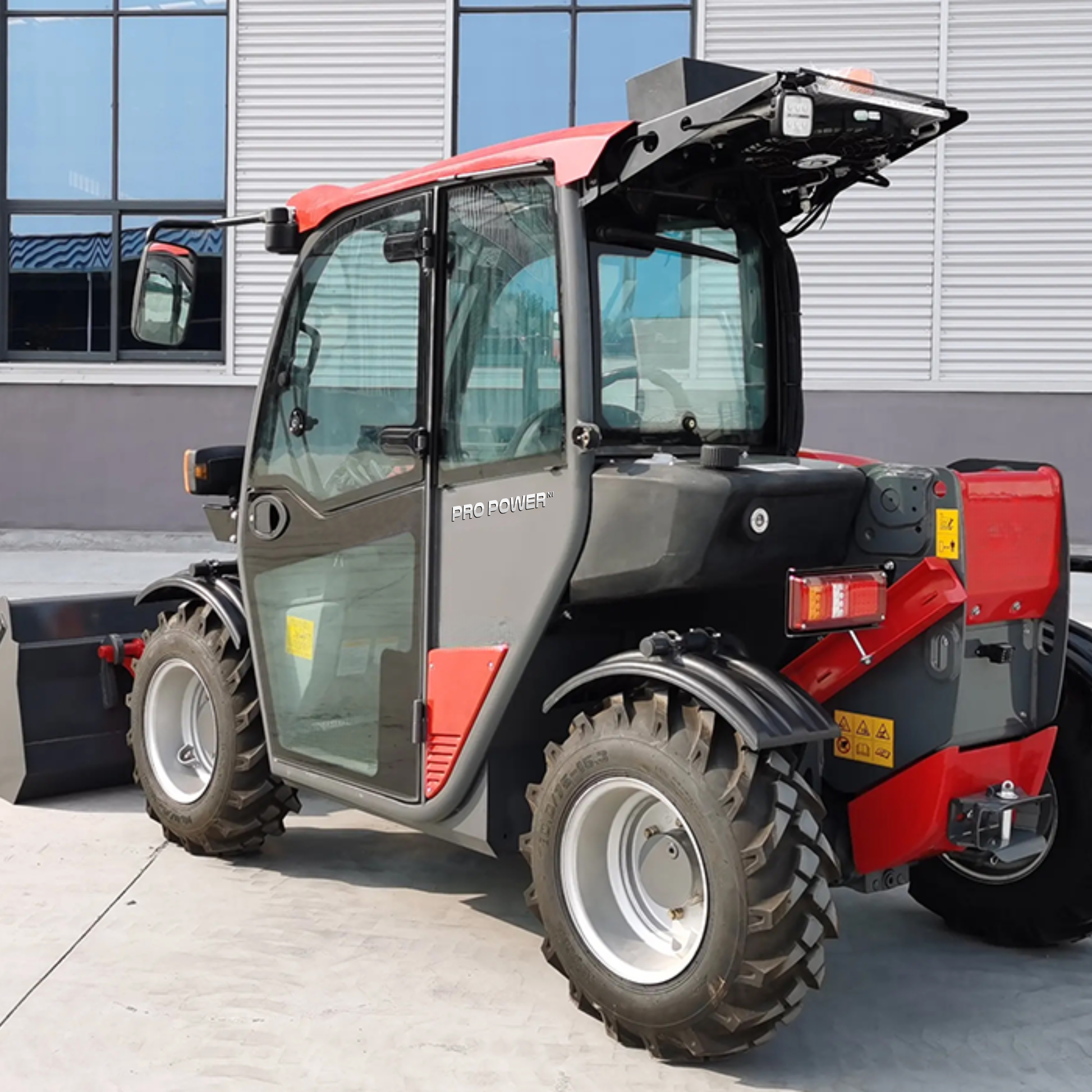

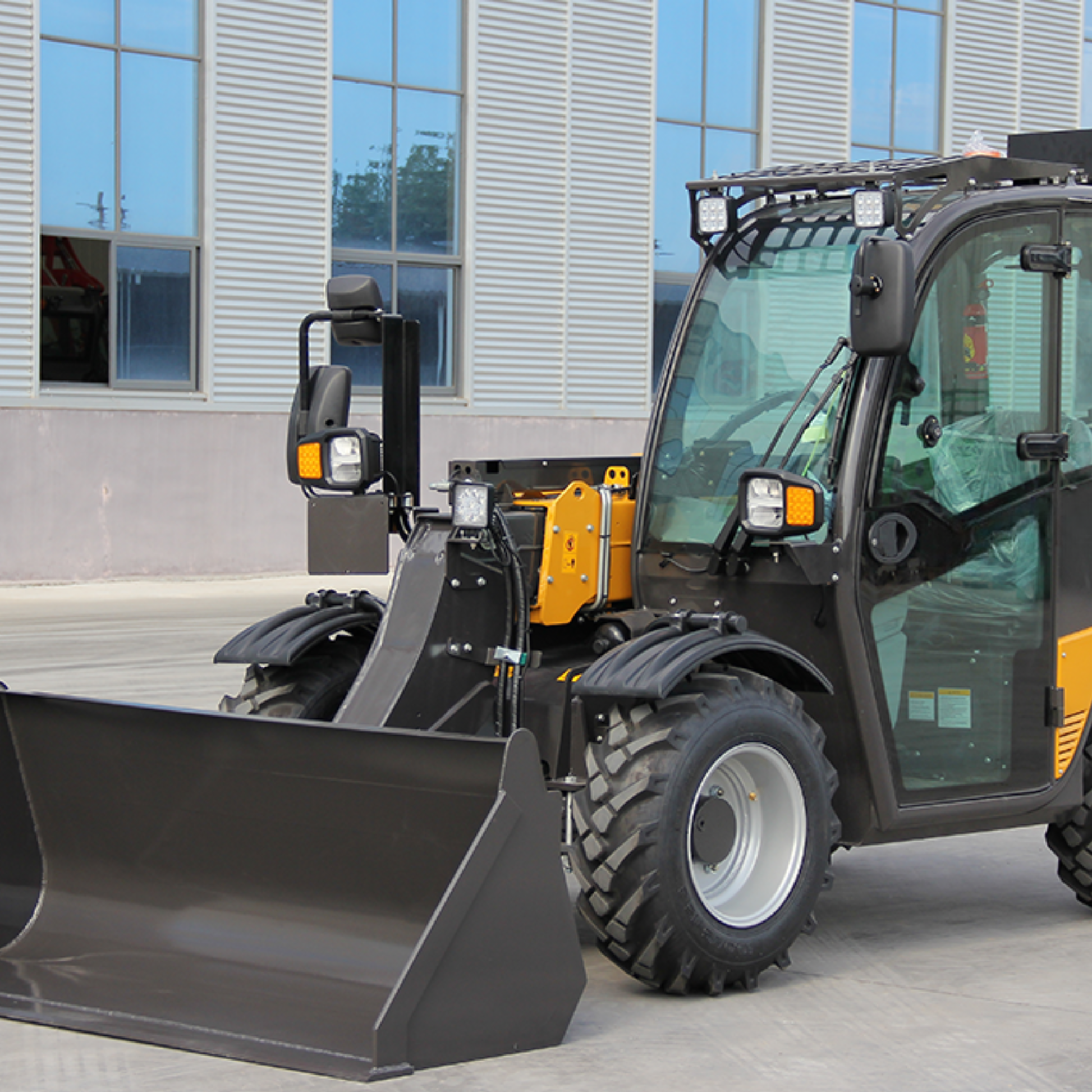

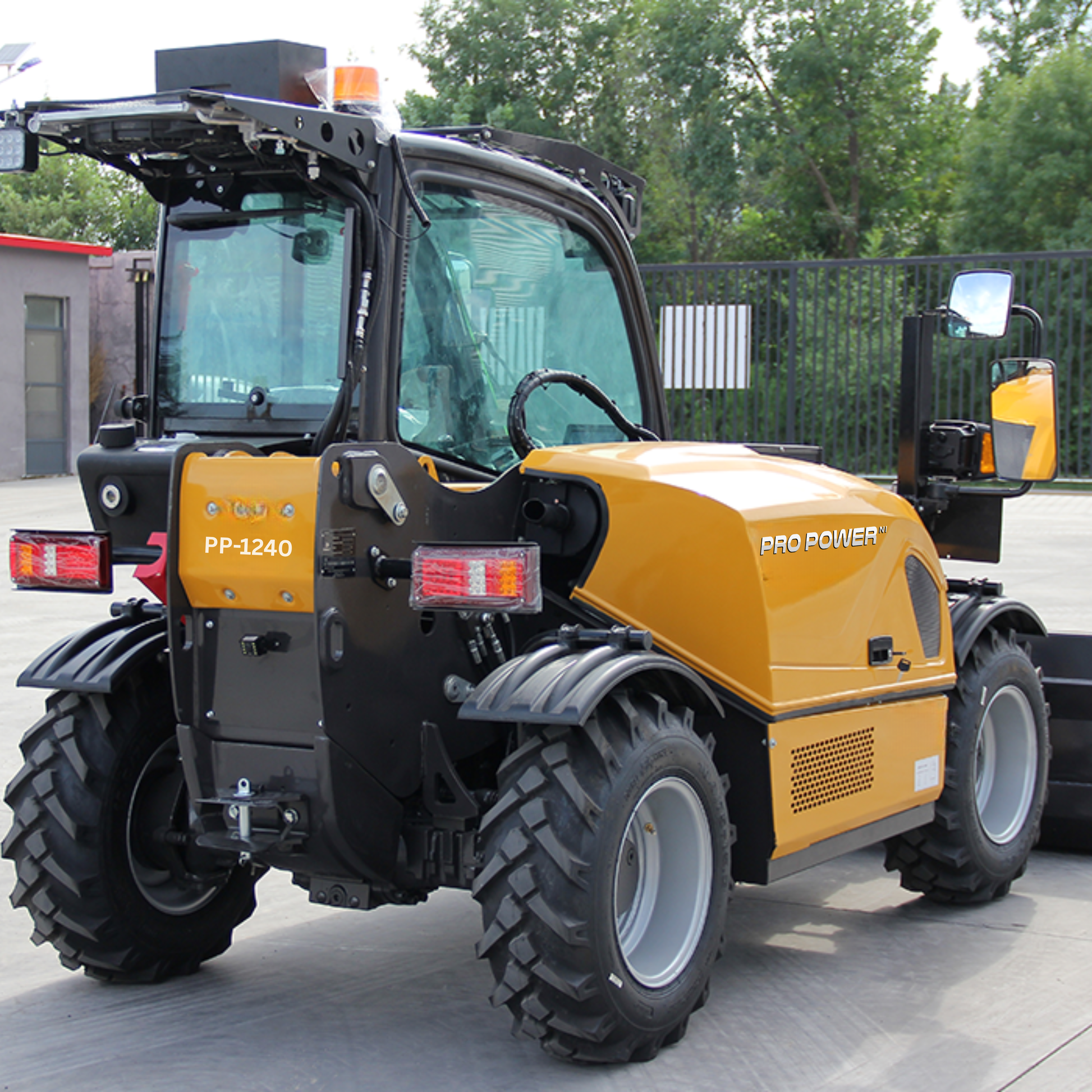

PP-1240 Telehandler

Compact Power | 4.5m Precision Reach | Yanmar Turbocharged Performance

The PP-1240 is a high-performance compact loader designed for operators who refuse to compromise between size and capability. Combining a genuine Yanmar turbocharged engine with an industry-leading telescopic reach, the PP-1240 is the ultimate tool for agriculture, construction, and high-reach material handling in confined spaces.

Vertical Mastery & Reach

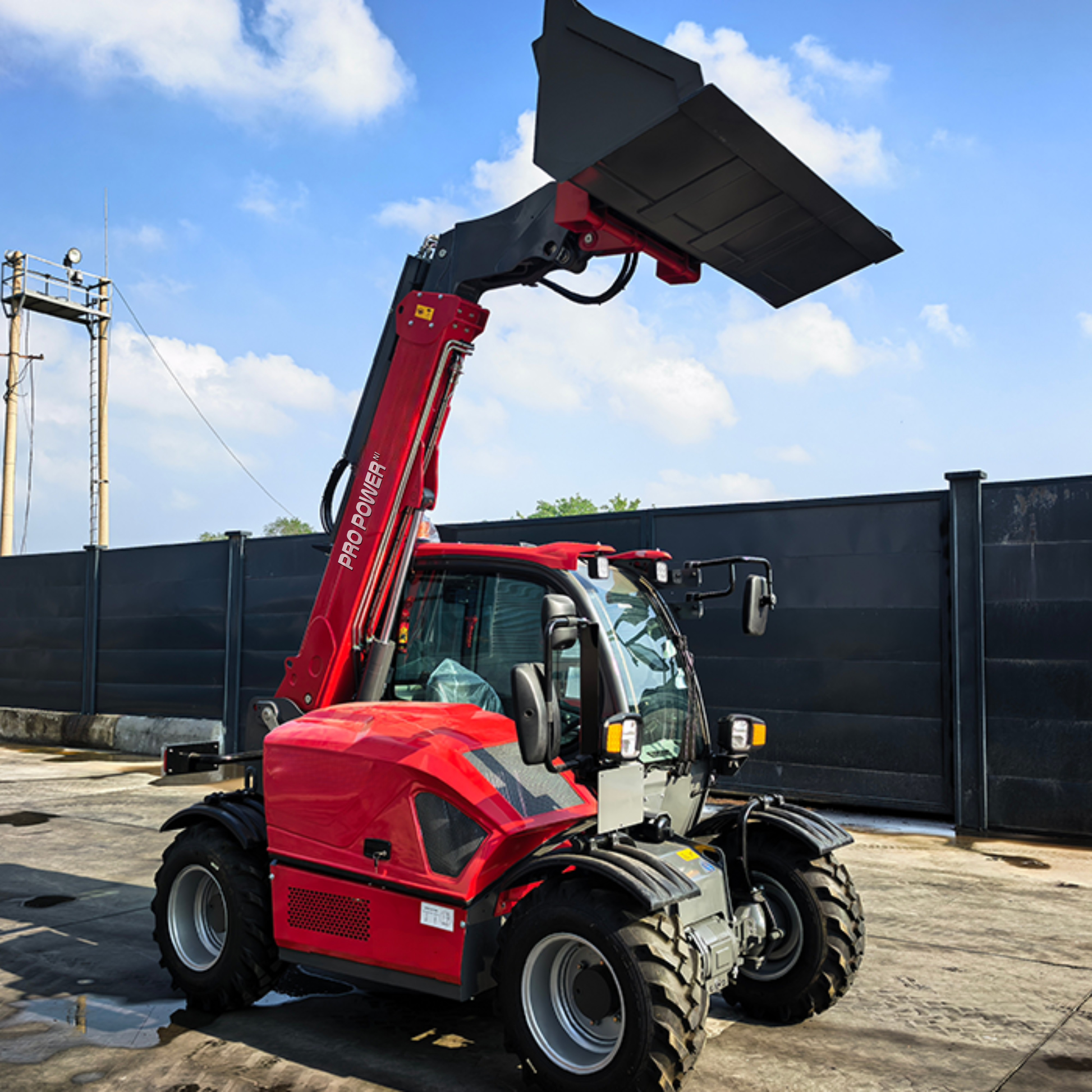

Don’t let the compact footprint fool you. The PP-1240 features a sophisticated telescopic arm that provides a maximum bucket pivot height of 4,537 mm. Whether you are loading high-sided diet feeders, stacking bales, or reaching over obstacles, the PP-1240 delivers the vertical performance of a much larger machine.

Max Payload: 1,500 kg

Total Working Height: 5,280 mm

Extended Dumping Height: 3,570 mm

The Gold Standard in Reliability

At the heart of the PP-1240 is the world-renowned Yanmar 3TNV86CT engine. This water-cooled, turbocharged power plant delivers a punchy 32.4 kW, ensuring you have the torque needed for heavy pushing and lifting. Paired with a PWG Hydrostatic transmission, the loader offers smooth, stepless speed control from 0–20 km/h via a universal joint shaft and planetary-steering drive axles.

Agile & Operator-Focused

With a total width of just 1,564 mm and a tight inner radius of 950 mm, the PP-1240 excels where larger loaders cannot.

Precision Hydraulics: 225 Bar system pressure with a 54 L/min discharge for fast, responsive attachment operation.

All-Terrain Capability: 295 mm ground clearance and heavy-duty planetary axles ensure stability on uneven yard surfaces.

Low Profile: At just 1,995 mm high (cab lowered), it easily navigates through low-clearance buildings and doorways.

Technical Specifications

Dimensions & Capability

Total Width: 1,564 mm

Total Length (with bucket): 3,945 mm

Ground Clearance: 295 mm

Dumping Angle: 31°

Tire Options: 10.0/75-15.3 (Standard) or 29X12.5-15 (Wide)
