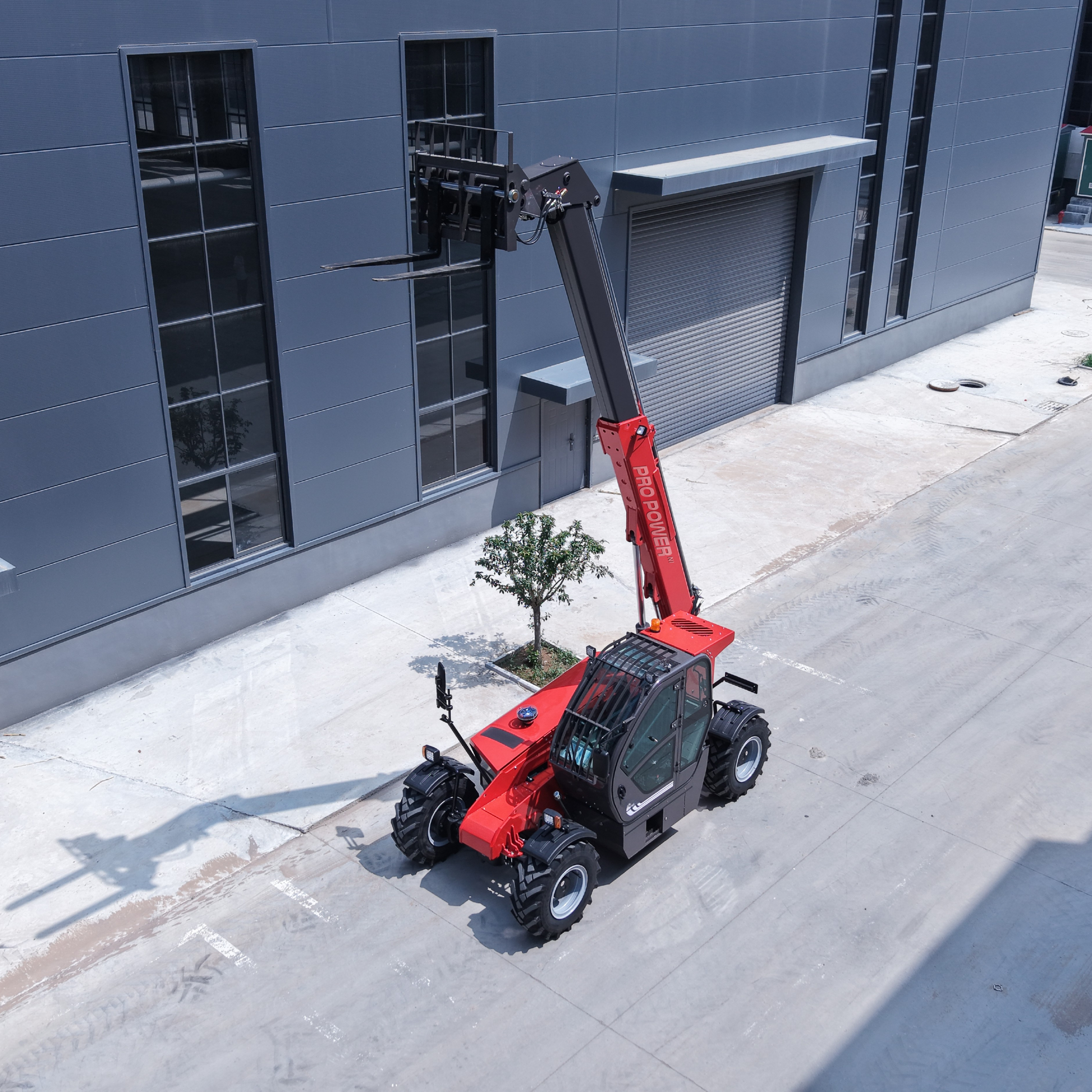

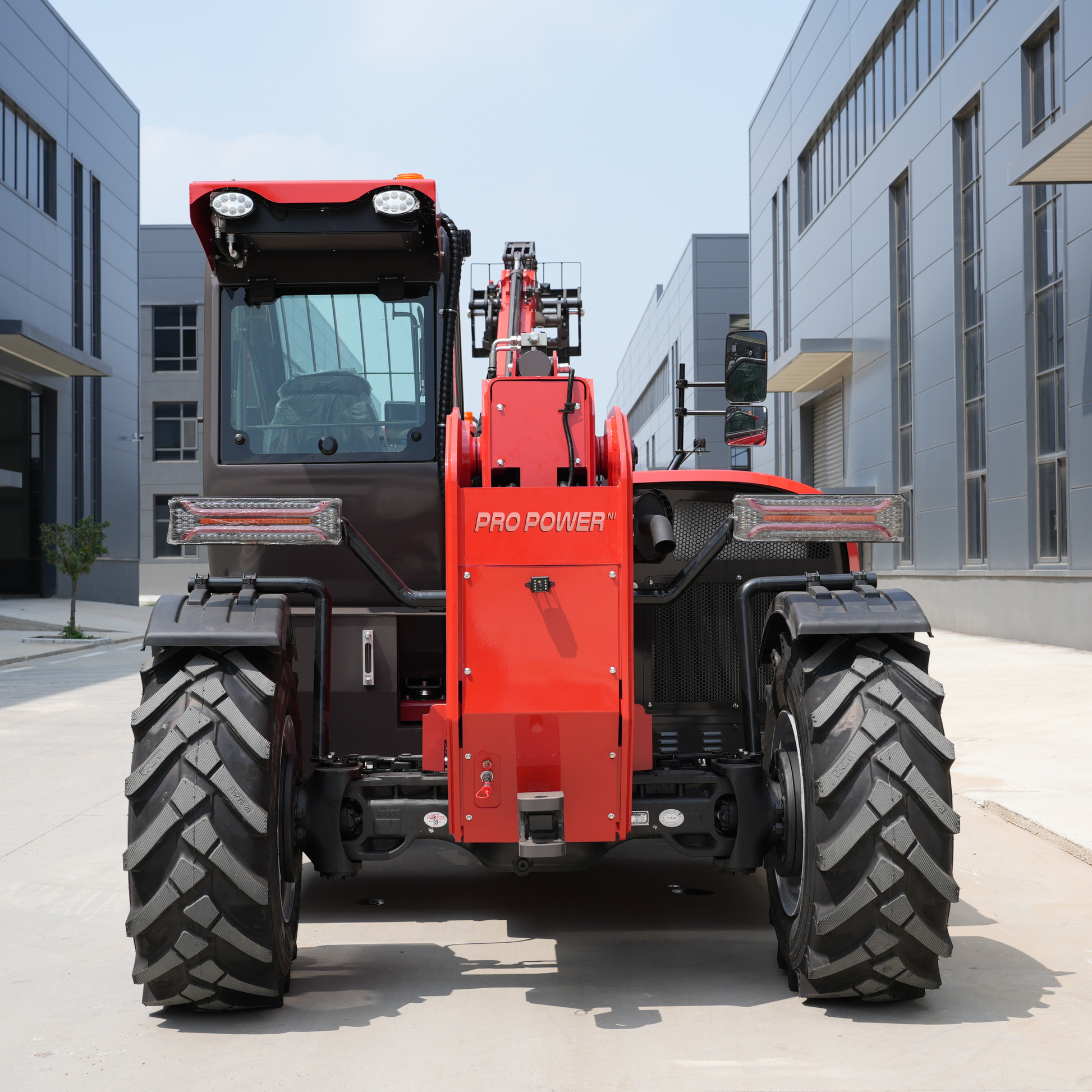

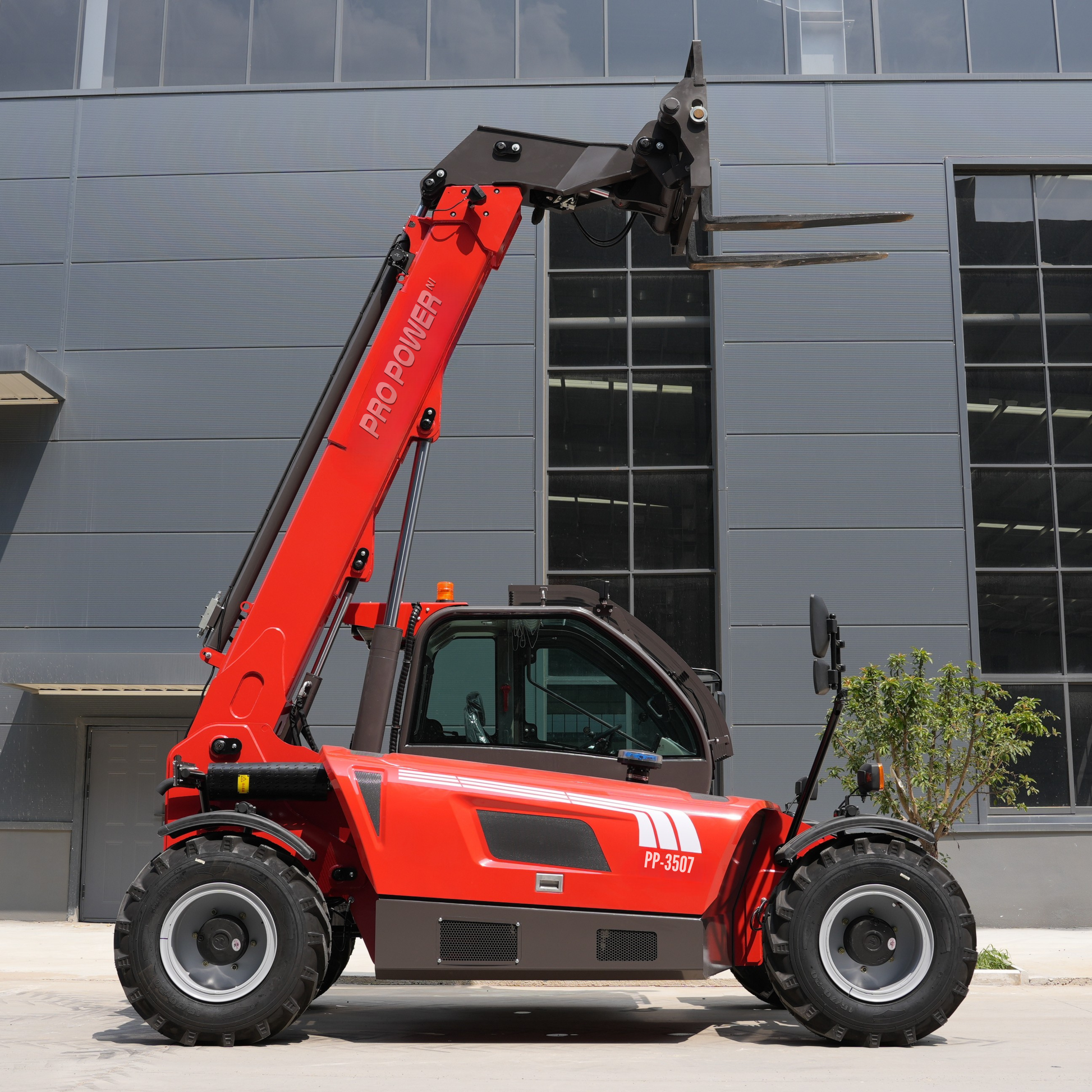

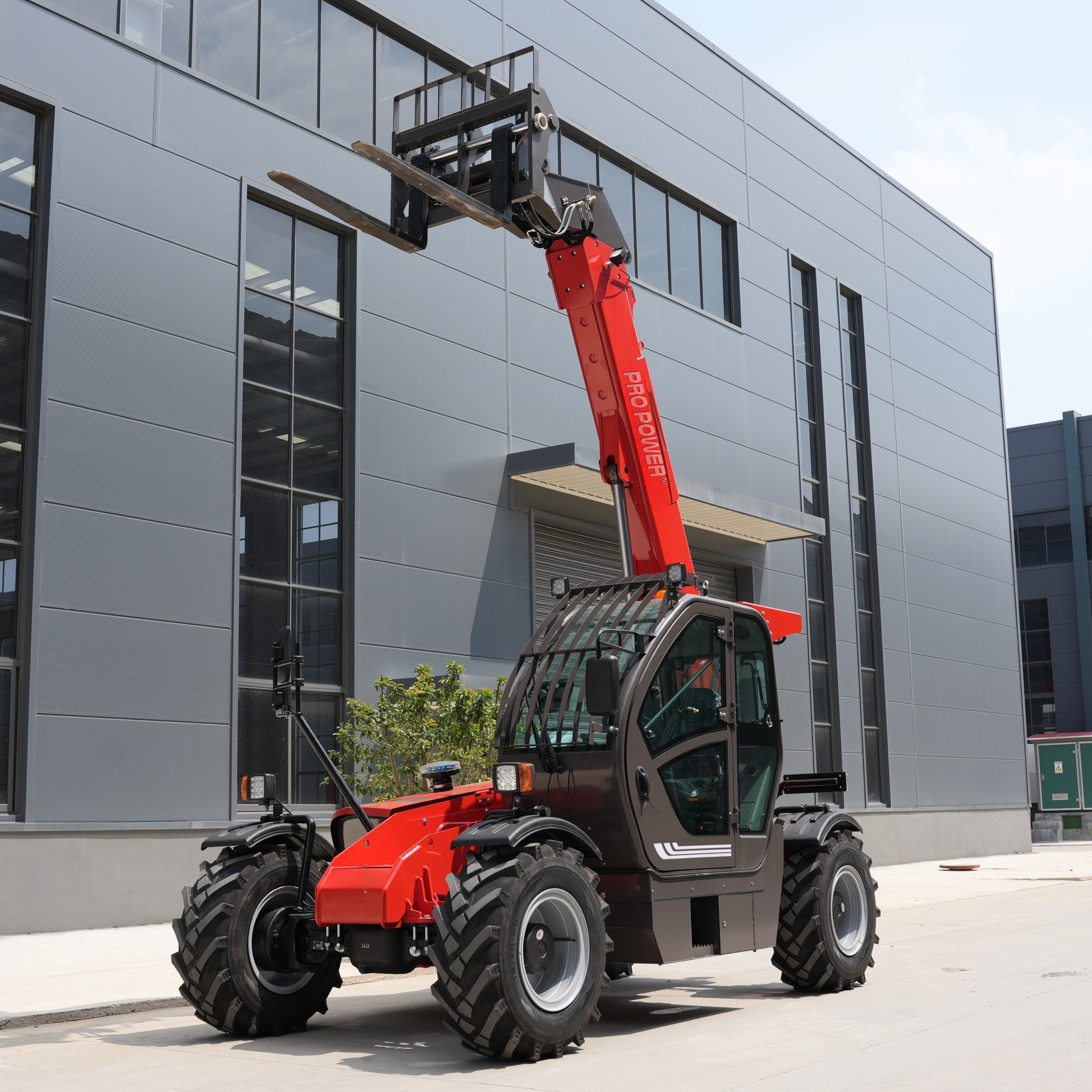

PP-3507 Telehandler

Key Features

Engine: Perkins Engine

Capacity & Reach

Rated Load Capacity: 3.5 Ton

Maximum Lifting Height: 7 metres

Maximum Outreach: 3.2 metres

Two-Section Telescopic Boom for extended reach and flexibility

Dimensions

Overall Length (to carriage): 4.65 m

Length to Fork Face: 5.87 m

Overall Width: 2.2 m

Overall Height: 2.55 m

Wheelbase: 3.15 m

Track Width: 1.78 m

Ground Clearance: 0.35 m

Cab Width: 0.84 m

Performance & Handling

Maximum Travel Speed: 35 km/h

External Turning Radius (over tyres): 4.25 m

Torque Converter Transmission

Forward / Reverse Gears: 2 / 2

4-Wheel Drive

4-Wheel Steering

Hydraulics & Operating Speeds

Hydraulic Pump: Gear Pump

Hydraulic Flow Rate: 100 L/min

Lift Time: 10 seconds

Lowering Time: 7 seconds

Extension Time: 12 seconds

Retraction Time: 8.6 seconds

Crowd Time: 4.8 seconds

Dump Time: 3.4 seconds

Engine & Power

Emission Standard: Euro 5

Engine Power: 74 kW

Maximum Torque: 420 Nm

4-Cylinder Engine (3.61L)

Low Sulphur Fuel Requirement: 10 mg/kg

Weight & Tyres

Unladen Weight (with forks): 7,600 kg

Tyre Type: Pneumatic (Tube Type)

Standard Tyres: 16/70-20

Braking & Safety

Parking Brake: Automatic Air-Cut Brake

Service Brakes: Immersed Multi-Disc Brakes (Front & Rear Axles)

FOPS Level 2 Safety Cab

Closed Cab with Air Conditioning

LED Green & Amber/Orange Flashing Beacons

Noise & Operator Comfort

Noise Level at Operator Position (LPA): 82 dB

Noise Level to Environment (LWA): 105 dB
