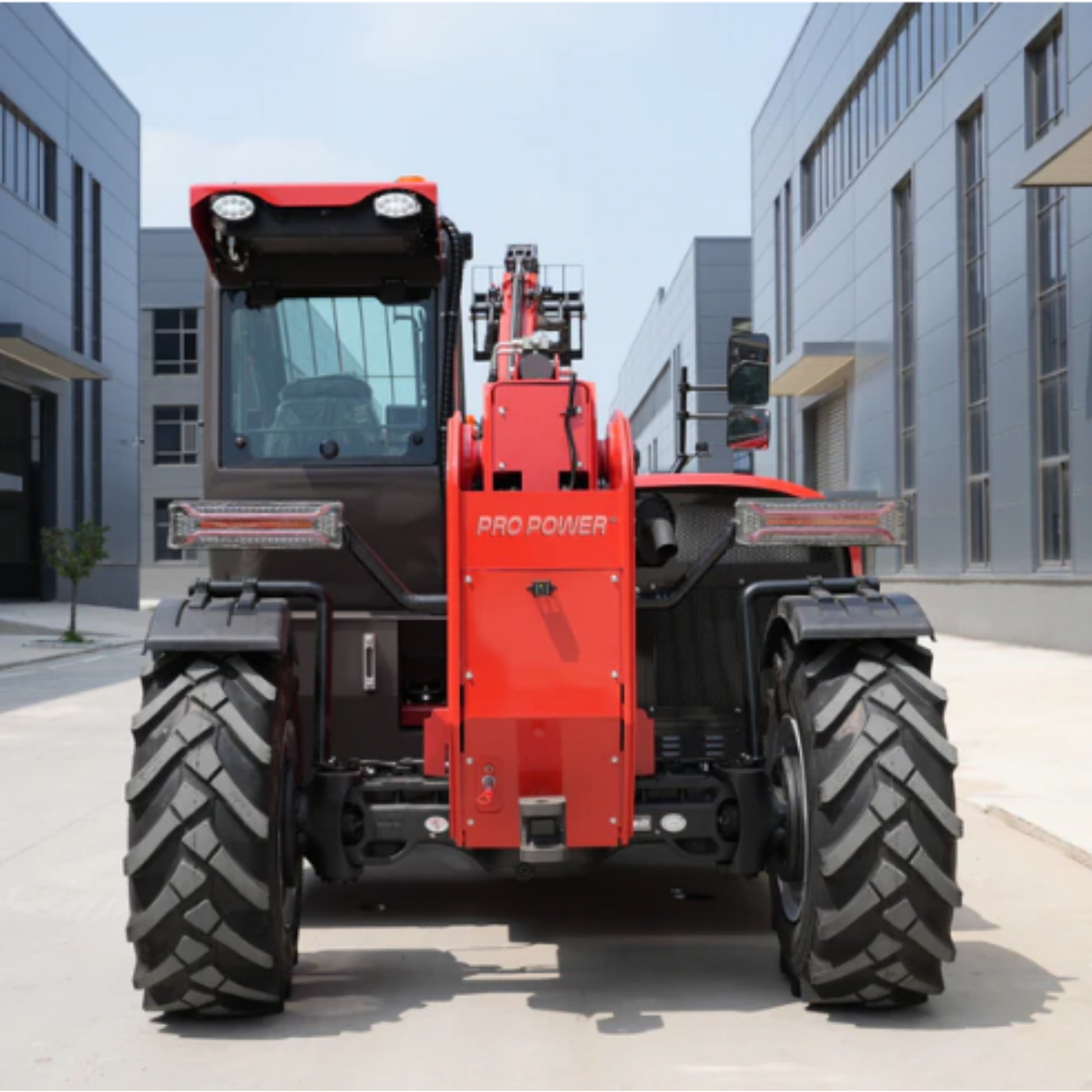

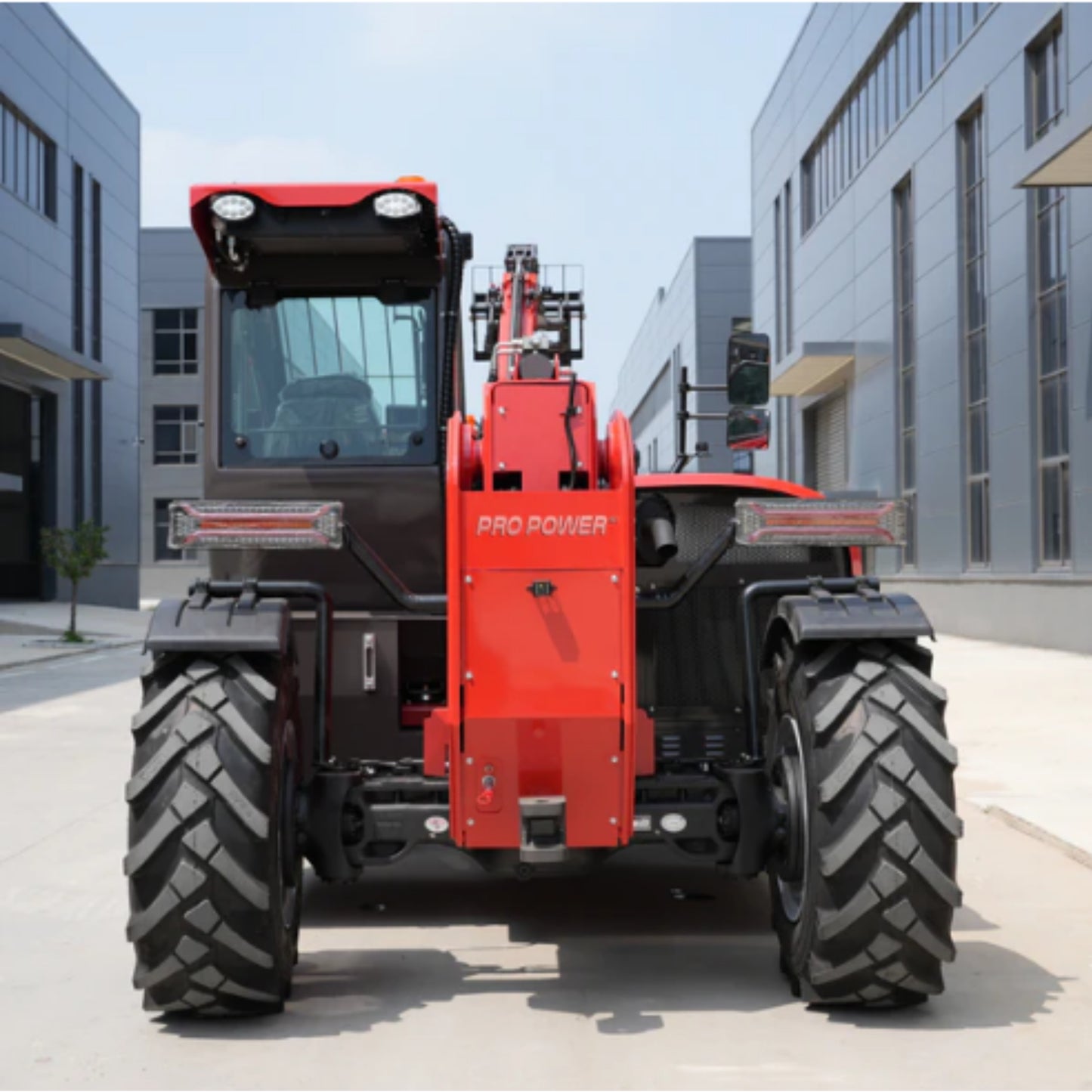

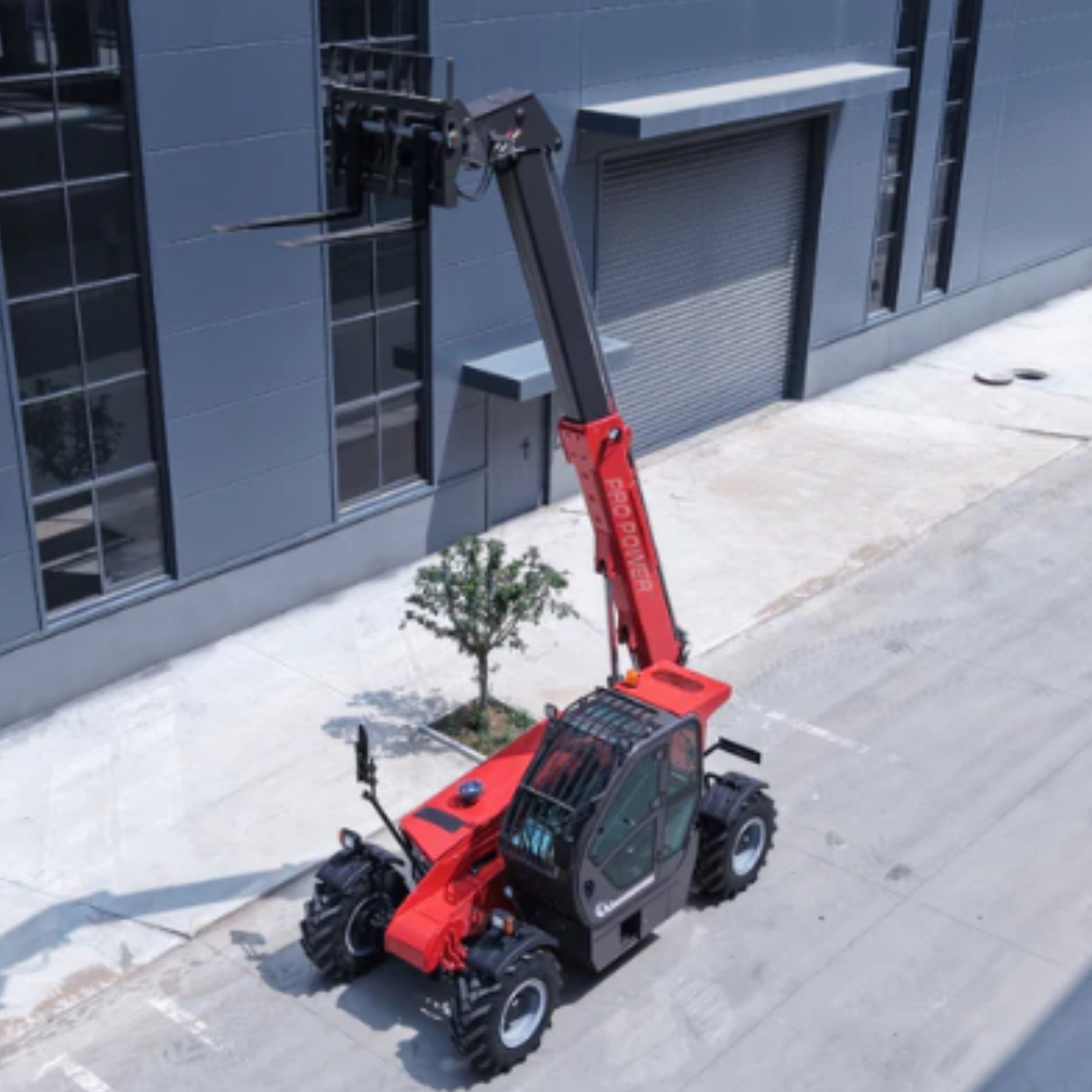

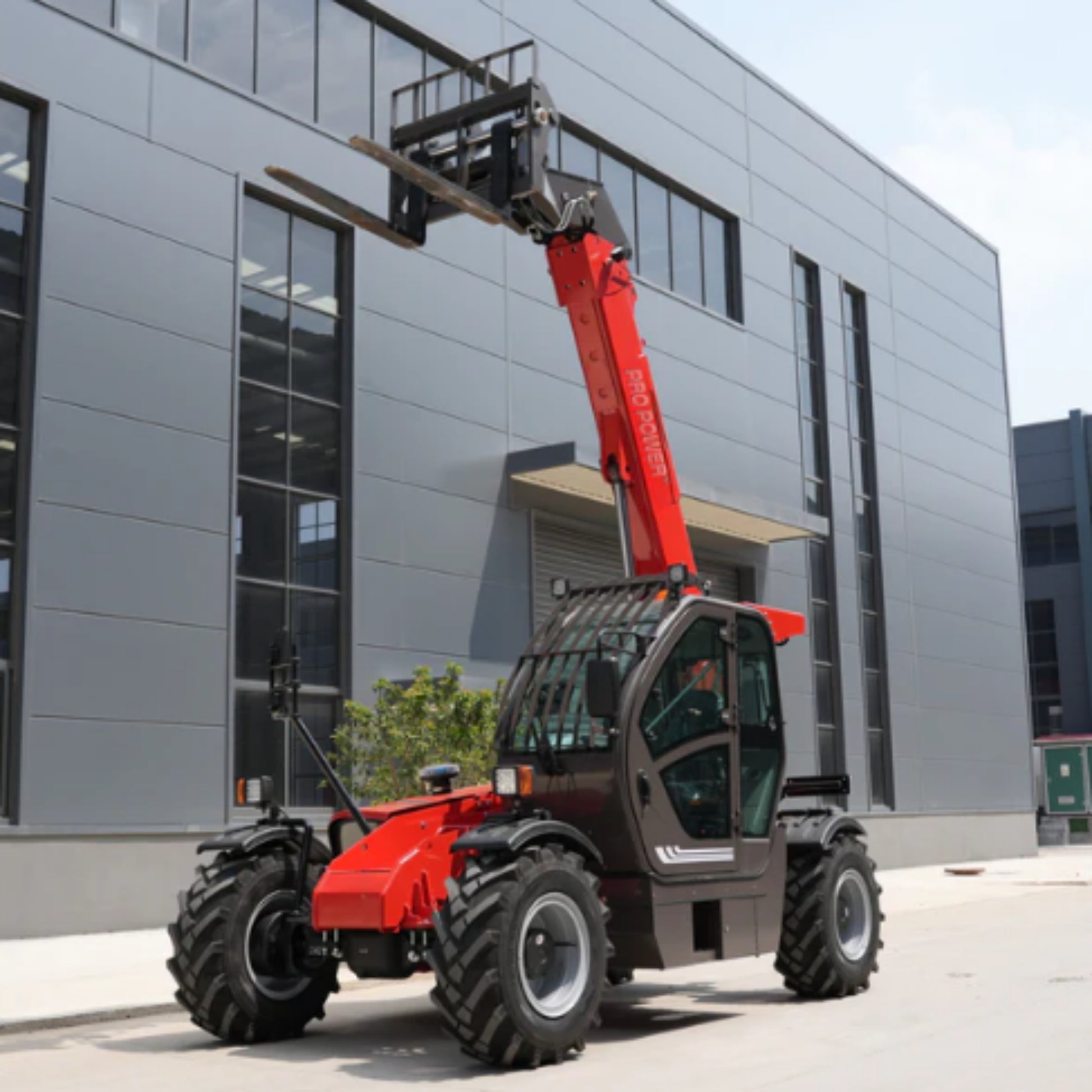

PP-3570 Telehandler

Built for demanding job sites, this high-performance teleporter delivers exceptional lifting power, reach, and manoeuvrability. Whether you’re handling pallets, bulk materials, or construction loads, this machine is engineered to perform efficiently and reliably in tough working conditions.

With a powerful drivetrain, strong tractive force, and a robust hydraulic system, it provides smooth operation, fast cycle times, and confident handling across uneven terrain. Its tight turning radius and stable wheelbase make it equally effective in confined spaces or open sites.

Key Performance Highlights

Impressive 7.0m maximum lift height for high-reach material handling

5.45m dump height ideal for loading trucks, hoppers, and stockpiles

Strong 48kN tractive force for excellent traction on rough ground

Responsive torque converter for smooth power delivery

High travel speed for efficient site movement

Heavy-duty hydraulic system built for continuous operation

Technical Specifications

Maximum Lift Height: 7000 mm

Maximum Dump Height: 5450 mm

Minimum Turning Radius: 5600 mm

Maximum Tractive Force: 48 kN

Engine Displacement: 4.33 L

Torque Converter: HK280

Maximum Speed: 30 km/h

Wheelbase: 2940 mm

System Working Pressure: 18–25 MPa
